FIAT DUCATO L4H2
Designed for demanding adventurers
Introducing a new campervan conversion designed for the Fiat Ducato, Peugeot Boxer, and Citroën Jumper L4H2 models, ideal for those seeking maximum comfort and functionality on their travels. This model includes all the necessary amenities for living and traveling with complete freedom, accommodating up to 4 people on the road and 2 comfortably sleeping, maximizing interior space and offering a practical, robust, and attractive layout. Designed for extended stays, with a full bathroom, heating, hot water, and a high-performance electrical system, this layout is designed to transform your van into a true home on wheels.
Main features of camper conversion
Places:
Approved for 4 travel places and 2 overnight places.

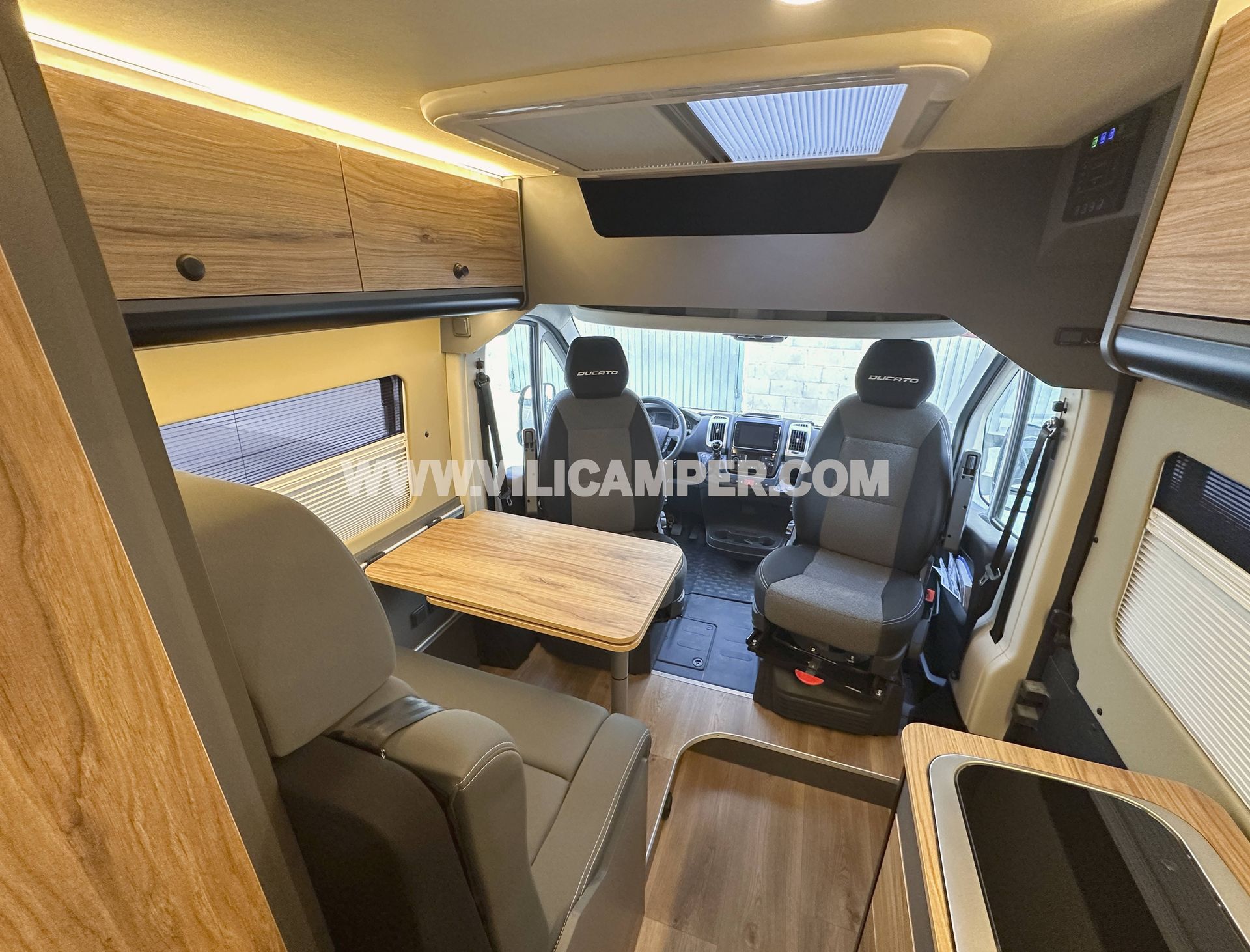

On the road, the vehicle has two front seats with swivel bases and two fixed rear seats, all approved and with seat belts.
The rear seat incorporates the Isofix system, offering safety for traveling with children.
For sleeping, the layout is designed for two people in a fixed double bed, ensuring a comfortable and spacious rest.
Insulation, floor, wall and ceiling paneling:
The interior is fully insulated to ensure excellent thermal comfort year-round. High-strength beige CPL plywood panels have been used for the roof, and 15mm plywood for the floor, the latter finished with non-slip PVC vinyl. The dining areas, rear doors, and sliding door have been upholstered for a warmer, more inviting feel.
Ventilation and natural light:
Este modelo cuenta con una excelente entrada de luz natural y ventilación cruzada gracias a una cuidada selección de claraboyas y ventanas:
- 1 Carbest Power Vent skylight measuring 28 x 28 cm, ideal for air extraction in humid areas such as the bathroom.
- Two Carbest Panorama skylights measuring 700 x 500 mm, one located above the dining room and the other above the bedroom, provide ample light and ventilation.
- 4 Carbest RW Van windows, strategically distributed: one in the sliding door, one in the dining room and two in the bedroom.
This set offers a feeling of spaciousness, efficient ventilation, and a visual connection with the outside environment.
Air conditioning:
An Autoterm Planar 4kW stationary heater has been installed, controlled by the convenient Comfort Control digital remote, ideal for keeping the interior at a good temperature even in winter.
Water installation:
The water system is designed to offer autonomy and ease of use:
- 93-liter clean water tank
- 78-liter wastewater tank
- Shurflo 10 L/min pressure pump and Fiamma expansion vessel
- Manual drain valve and external fill port
Robust and quiet installation, ideal for extended use
Electrical installation:
The electrical heart of this camper conversion consists of:
- Stay Power 100Ah LiFePO4 lithium battery, lightweight and durable
- CBE PC180 control unit with intuitive interface
- Victron Orion Tr-Smart 12/12-30A Booster for efficient on-the-go charging
- 1000W pure sine wave inverter for using 220V appliances
- External power socket for connection at campsite or base
- Placa solar rígida monocristalina de 200W, ideal para cargar la batería de forma autónoma
- Victron Smart Solar MPPT 75/15 solar charge controller, which optimizes charging and protects the system
- Several USB, 12V and 220V sockets distributed throughout the cabin
Lightning:
The lighting has been carefully considered to create a welcoming and functional atmosphere:
- Recessed LED ceiling spotlights
- Bedside reading lamps with USB port
- High-performance LED panel recessed in kitchen/dining room upper cabinets
- Superior ambient LED light
Gas installation:
The vehicle has a complete gas installation, designed to power both the kitchen and the hot water system.
Kitchen equipment:
A Dometic HSG2370 combined kitchen and sink unit has been installed, integrated into the cabinetry. It also includes a high-capacity, efficient Dometic NRX80C compressor refrigerator, perfect for storing food and drinks during long trips.
Separate bathroom:
A truly complete bathroom, designed for everyday comfort:
- High-quality shower tray
- Thetford C223 CS fixed WC with console
- Round stainless steel sink
- Single-lever tap for washbasin and shower

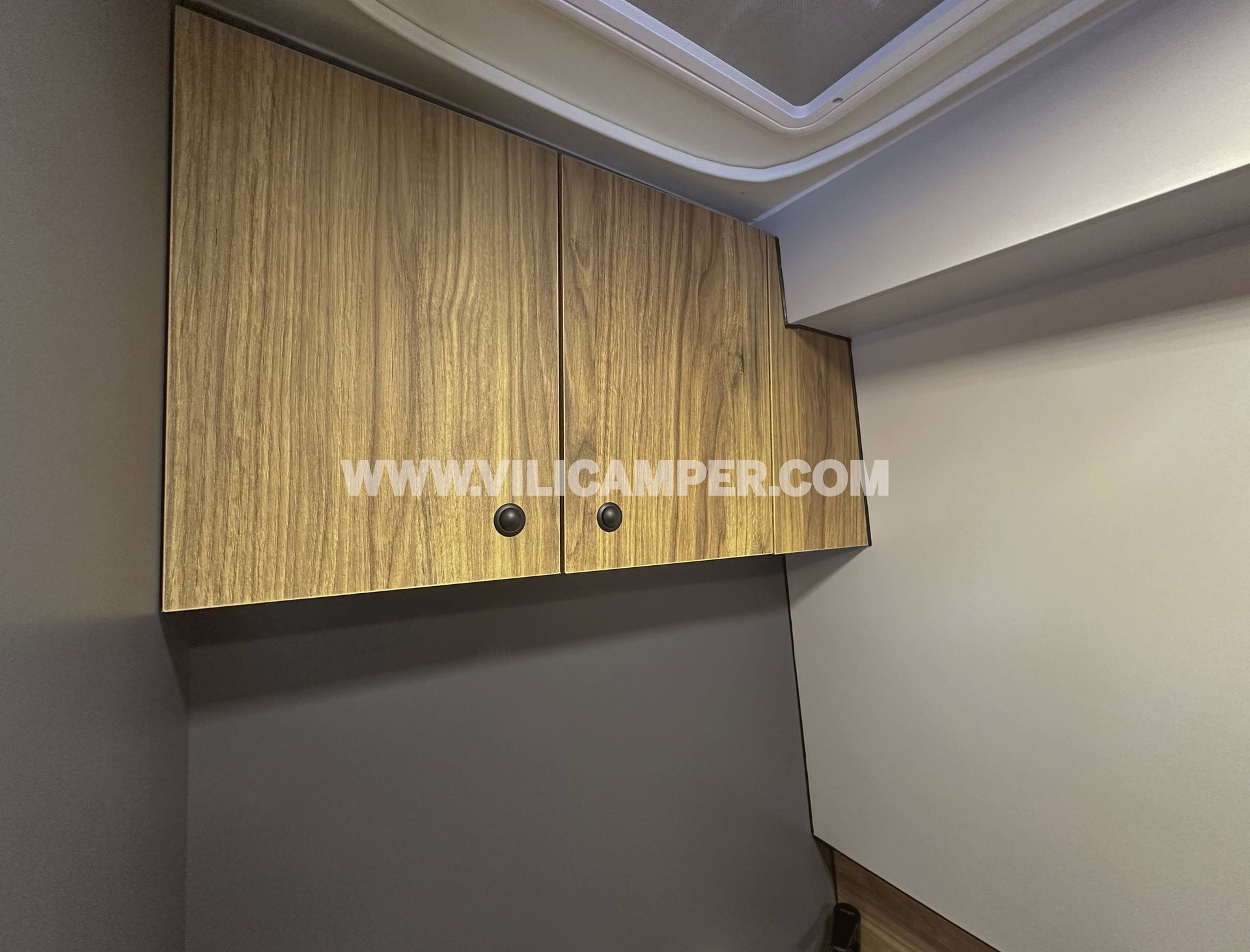

- Large mirror and upper cabinet with door

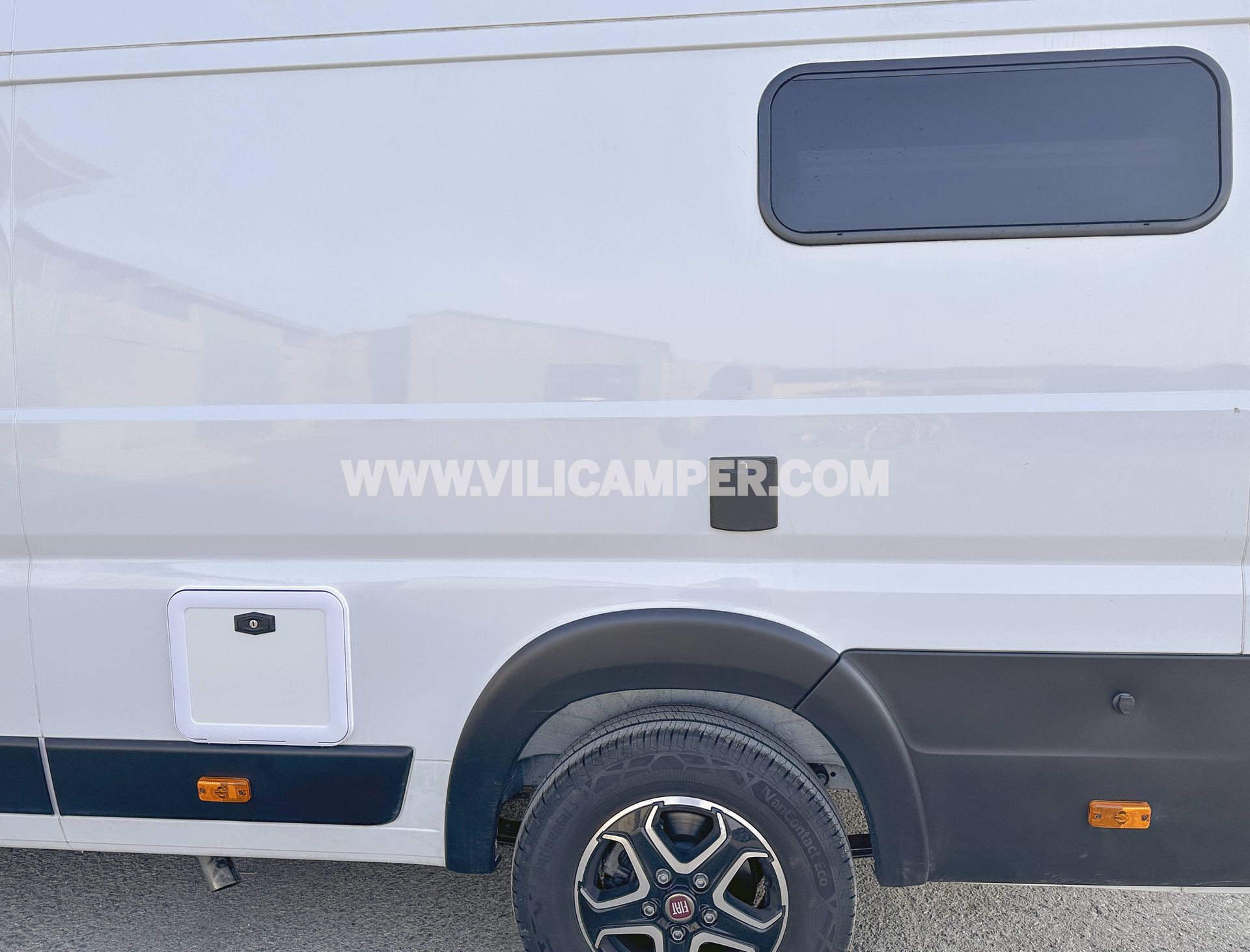

- Exterior service door for easy emptying and maintenance
Bedroom:
The sleeping area includes a fixed double bed with a 10cm medium density mattress, designed to offer excellent comfort without sacrificing storage space underneath.
Hot water:
Thanks to the Whale Expanse 8-liter gas water heater, you can enjoy hot water in both the kitchen and the shower, even in the coldest months.
Quality in furniture and finishes:
At Vilicamper, we take care of every detail to deliver a professional and lasting result. All the furniture is custom-made for this campervan conversion, allowing us to maximize space and guarantee a perfect finish. We exclusively use high-quality HPL laminated plywood, a durable, lightweight, and easy-to-maintain material that offers a modern and elegant aesthetic. Each piece is precisely manufactured, ensuring a solid assembly, clean edges, and a premium finish. As always, we incorporate top-brand accessories, selected for their reliability and functionality, exceeding expectations on every project.
Extras:
To increase comfort outdoors, a Fiamma F80S awning in black has been installed, ideal for creating a shaded space at any stop.
Approval:
It includes a complete homologation project and up-to-date technical inspection (ITV passed), so you can drive and enjoy your camper without worries.
