FIAT DUCATO L4H3

Places:

Approved for 4 people. This camper conversion includes:

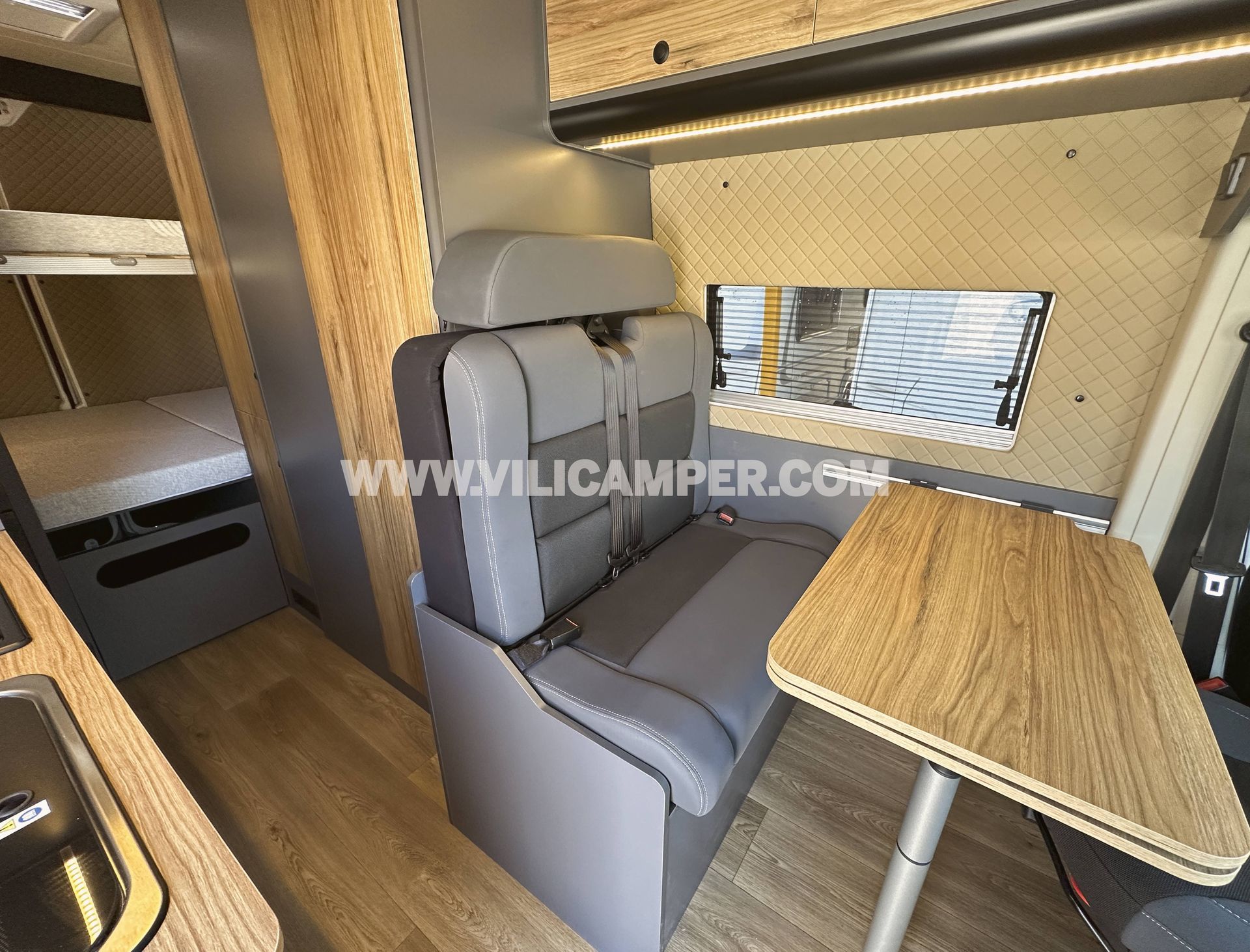

• Approved 2-seater CTA structure, equipped with seat belts, headrests and Isofix
• Rear seat with high-density foam and ergonomic design, designed to offer maximum comfort even on long journeys.

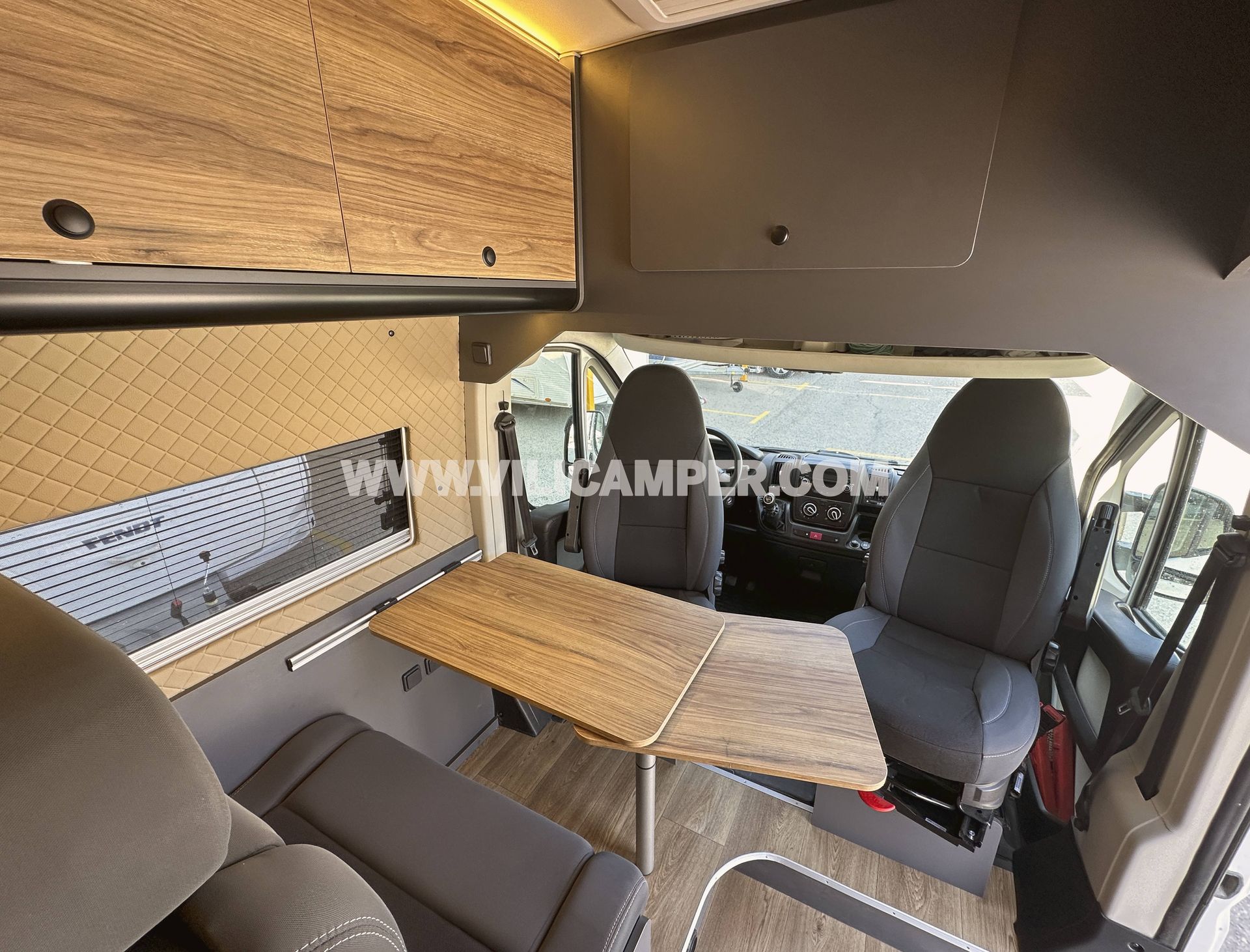

• Bases giratorias CTA en piloto y copiloto, que permiten integrar los asientos delanteros a la zona de comedor, favoreciendo una distribución más versátil y social del espacio.

Rest area for 4 people:

• Fixed double bed at the rear with a high-quality 10cm foam mattress.
• Folding upper bunk with removable frame, aluminum finishes, ladder and high-quality 10cm mattress.

Insulation, floor, wall and ceiling paneling:

This campervan conversion is fully insulated with 20mm and 10mm Kaiflex, a high-performance material that offers excellent thermal and acoustic protection, guaranteeing a comfortable environment in both winter and summer.

The interior lining has been designed to withstand heavy use without compromising aesthetics or functionality:

• Flooring: Paneled with 15mm plywood and finished in seamless PVC vinyl, a durable, non-slip and easy-to-clean solution.
• Ceiling: Paneled with 5mm Beige plywood, which provides brightness and a welcoming atmosphere.
• Walls, back doors and sliding door: upholstered with high-quality textile material, which in addition to providing warmth and visual comfort, improves interior insulation and is very easy to clean.
• Upper dining panel: also upholstered, creating a cozy and inviting feel in the living area.

Ventilation and natural light:

Este modelo cuenta con una excelente entrada de luz natural y ventilación cruzada gracias a una cuidada selección de claraboyas y ventanas:

• 1 Dometic Micro Heki skylight of 280 x 280 mm, ideal for humid areas.
• 2 Dometic Mini Heki skylights of 400 x 400 mm, above the dining room and bedroom.
• 2 tilt-and-turn windows measuring 900 x 450 mm with blackout blinds and mosquito nets.

This set offers a feeling of spaciousness, good air circulation and a visual connection with the outside environment.

Air conditioning:

It includes an Autoterm Planar 4kW diesel-powered stationary heater. The system is managed via the Comfort Control digital display and features several hot air outlets distributed throughout the living area, ensuring a comfortable temperature even on the coldest days.

Water installation

System designed for reliability and autonomy:

• Shurflo 10 L/min pressure pump.
• Fiamma expansion vessel (0.9 bar).
• 104L clean water tank with magnetic external filling connection.
• Depósito de aguas grises de 78 L con llave de vaciado manual acodada.
• RK Reich outdoor cold water shower with tap and hose.

Gas installation

Complete gas installation for kitchen and water heater.

Hot water

An 8-liter Whale Expanse water heater has been installed on the exterior of the vehicle. This unit runs on gas, providing hot water quickly and efficiently for the shower or sink, without relying on electricity.

Electrical installation

A complete installation designed to offer autonomy and security:

• 100 Ah lithium battery.
• CBE PC180 control unit.
• 220V camping-type outdoor socket.
• 1000W Pure Sine Wave Inverter Charger
• 12V, 220V and USB sockets distributed throughout the cabin.
• 200W monocrystalline solar panel.
• Victron SmartSolar MPPT 75/15 Solar Controller.

The entire system has been designed to be easy to use and ensure autonomy on the road or while camping without a network connection.

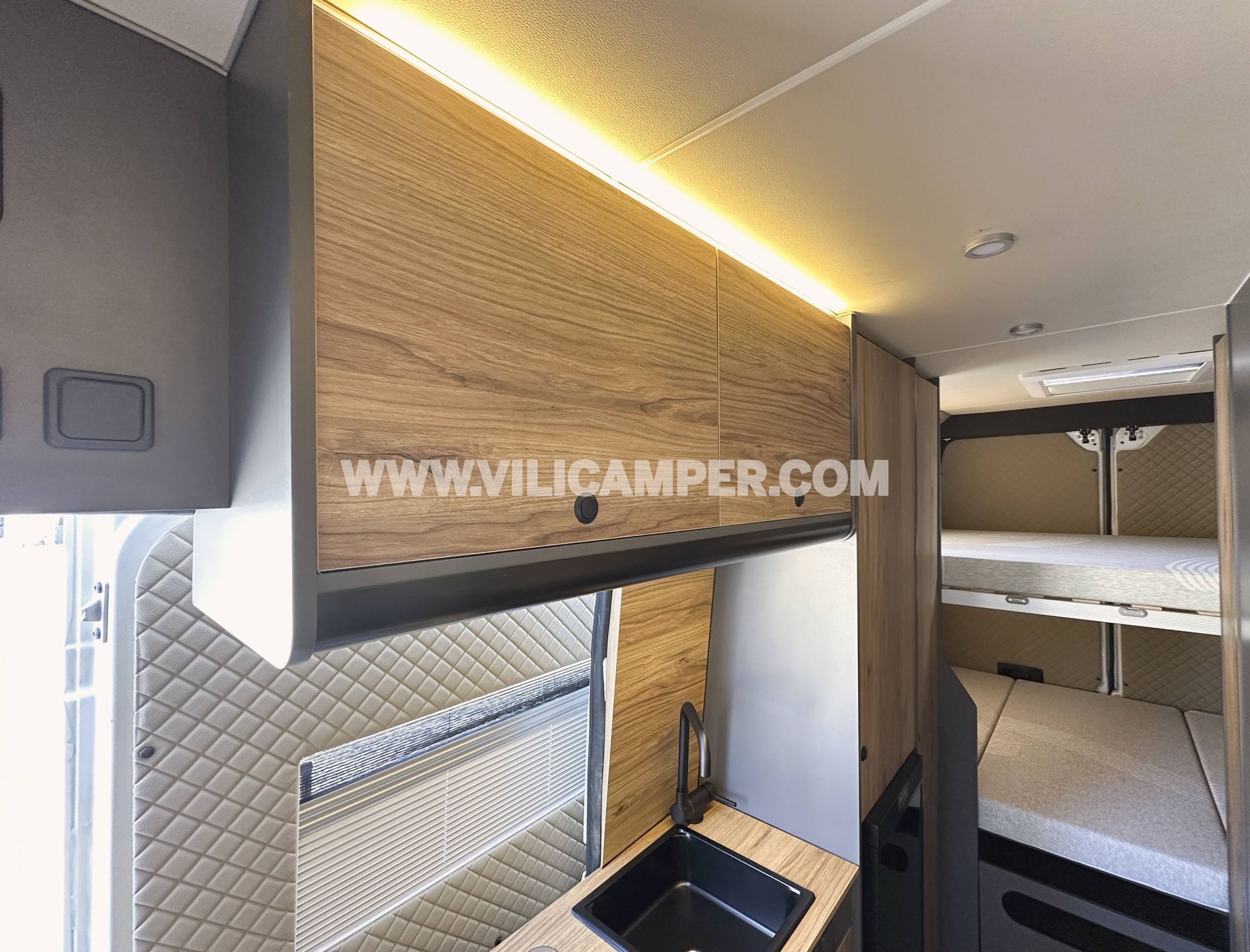

Interior lighting

Energy-efficient and long-lasting LED lighting:

• Recessed ceiling spotlights.
• LED panel in the bathroom.
• Warm ambient lighting.
• 4 adjustable LED flexible lamps with USB port, ideal for reading.
• Iluminación funcional distribuida por zonas clave (dormitorio, comedor, litera).

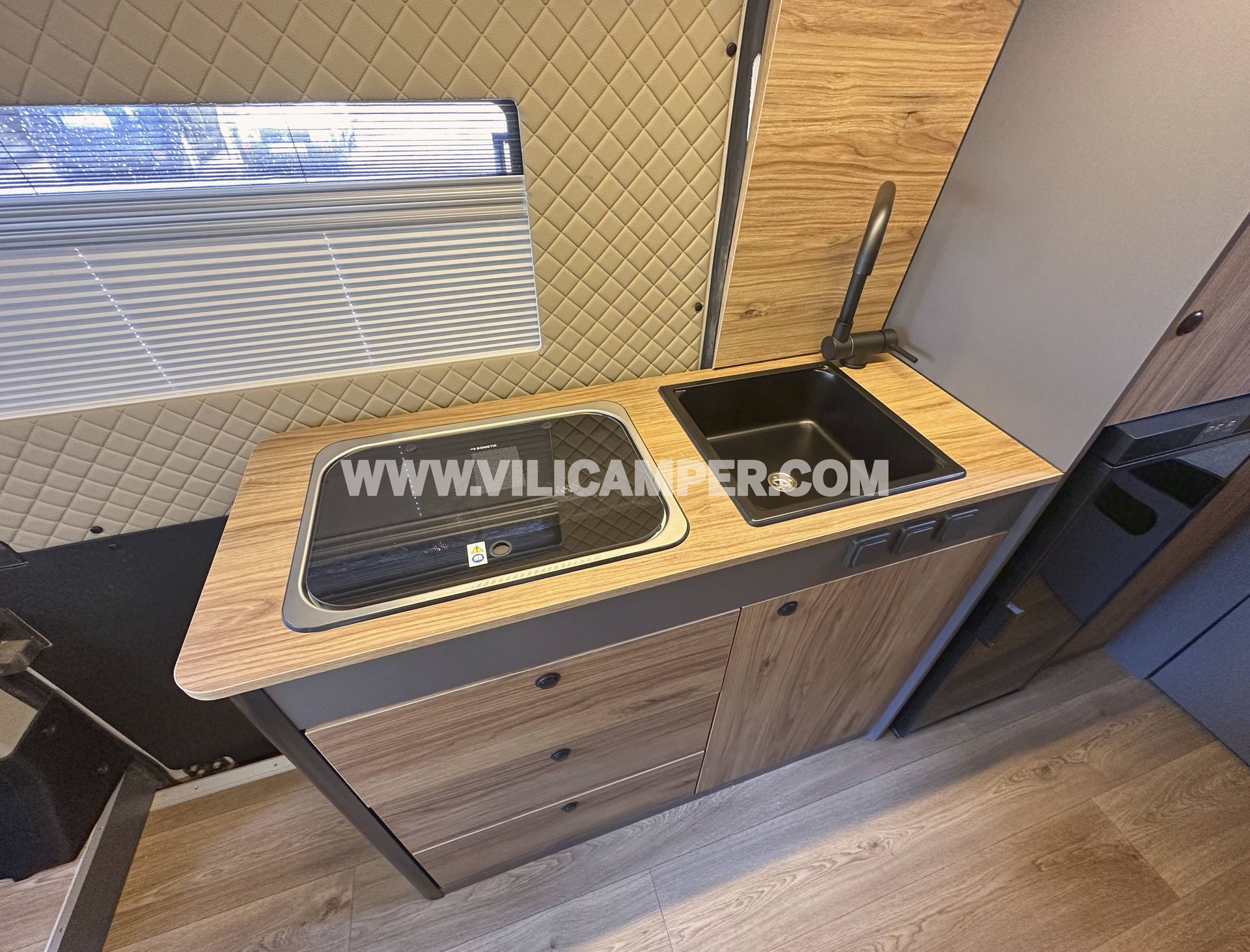

Kitchen equipment

Complete and functional kitchen:

• Dometic HBG 2335 gas hob with glass lid and 2 burners.
• Square black sink measuring 35 x 35 cm.
• Single-lever tap with high spout.
• Coolzone RV90L Compressor Refrigerator

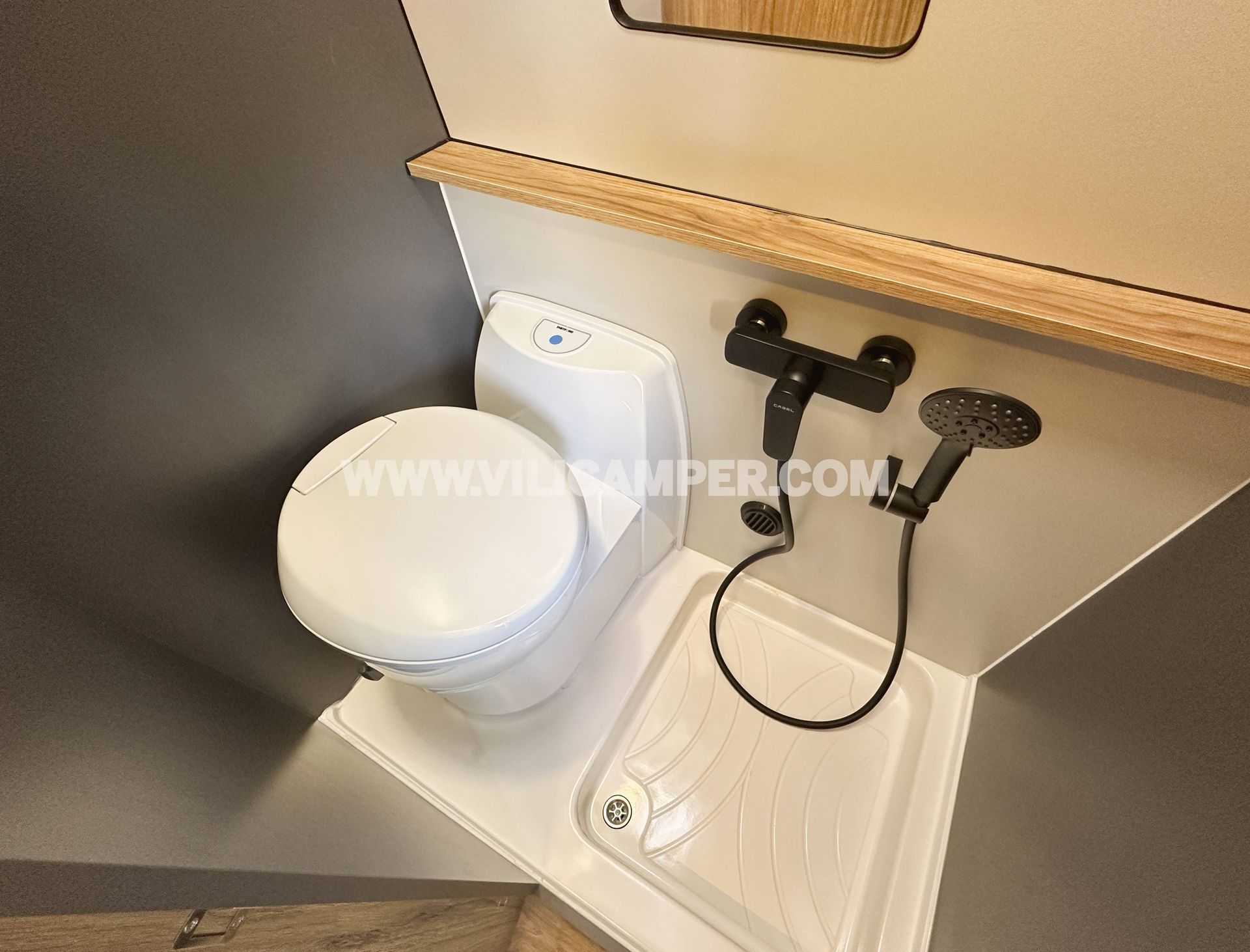

Separate bathroom

Complete and comfortable bathroom space:

• Thetford C223 fixed WC with black water cassette and external service door.
• High-quality, spacious shower tray
• Grifo monomando con flexo de ducha y colgador.
• Large mirror (500 x 800 mm).

Designed to offer privacy and functionality without taking up too much space.

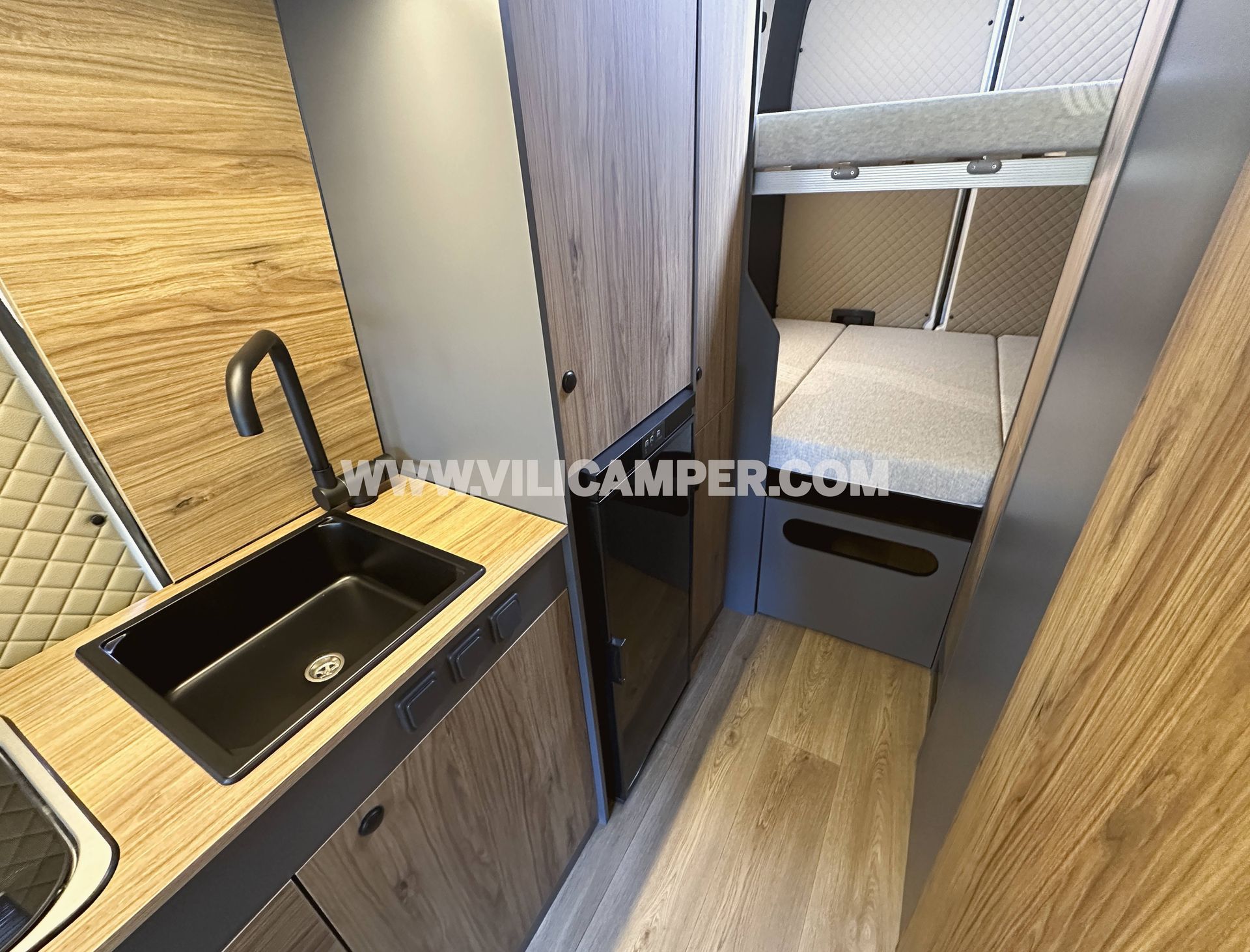

Bedroom:

This camper conversion features two sleeping areas designed to offer maximum comfort and versatility:

• Fixed lower bed: Robust frame with a fixed side base and a fold-down central panel, allowing easy access to the storage area underneath or loading large items when needed. Side storage compartments offer additional space, ideal for storing clothes, kitchenware, or travel gear. Includes a 10 cm viscoelastic mattress, custom-designed to ensure a comfortable and restful sleep.
• Upper bunk: foldable and removable structure with aluminum finishes, equipped with a custom-made mattress and accessible via a Fiamma ladder. A practical solution for having a second bed without compromising interior space during the day.

Quality in furniture and finishes:

At Vilicamper, we take care of every detail to deliver a professional and lasting result. All the furniture is custom-made for this campervan conversion, allowing us to maximize space and guarantee a perfect finish. We exclusively use high-quality HPL laminated plywood, a durable, lightweight, and easy-to-maintain material that offers a modern and elegant aesthetic. Each piece is precisely manufactured, ensuring a solid assembly, clean edges, and a premium finish. As always, we incorporate top-brand accessories, selected for their reliability and functionality, exceeding expectations on every project. Intelligent layout and ergonomic design.

Extras

• Dometic PerfectView CAM35NAV rear camera integrated into the third brake light.
• Custom front covers in anthracite color.



Approval:

Includes homologation project as a motorhome:

• It complies with current regulations.
• It allows you to legally drive up to 120 km/h.
• Annual vehicle inspection (ITV) starting from 10 years of age.
• Guarantee of safety, legality and peace of mind.
