FORD TRANSIT L2H2

Places:

Approved for 2 people. This camper conversion includes:

• Original cockpit seats with CTA swivel bases in pilot and co-pilot, allowing them to be rotated towards the day area and create a spacious and functional dining area.
• A long wooden bench without safety belts, accompanied by a fixed dining table, ideal for creating a relaxation area or indoor meals, maintaining a clear and comfortable layout.

Rest area:

• Fixed double bed at the rear with 10cm D25 foam mattress and quilted fabric, custom designed to offer restful sleep.

Insulation, floor, wall and ceiling paneling:

Fully insulated camper with 20mm and 10mm Kaiflex to offer excellent thermal and acoustic performance in any season.

High-quality interior finishes:

• Suelo: contrachapado de 15 mm con revestimiento en vinilo PVC sin juntas, resistente, antideslizante y fácil de limpiar.
• Ceiling: beige plywood paneling that provides light and warmth.
• Walls, back doors and sliding door: upholstered with textile material, which improves insulation, provides a welcoming aesthetic and is easy to clean.
• Dining room top panel: also upholstered to create a more enveloping atmosphere.

Ventilation and natural light

Excellent air circulation and light entry thanks to:

• 1 Dometic Micro Heki skylight of 280 x 280 mm with forced ventilation.
• 1 Dometic Mini Heki skylight of 400 x 400 mm.
• 1 Fiamma Turbo Vent Premium Crystal 40 x 40 cm skylight with built-in fan.
• 1 Fiamma Rollo Vent blackout blind for greater comfort.
• 2 hinged windows measuring 700 x 400 mm, with blackout blinds and mosquito nets.

Air conditioning

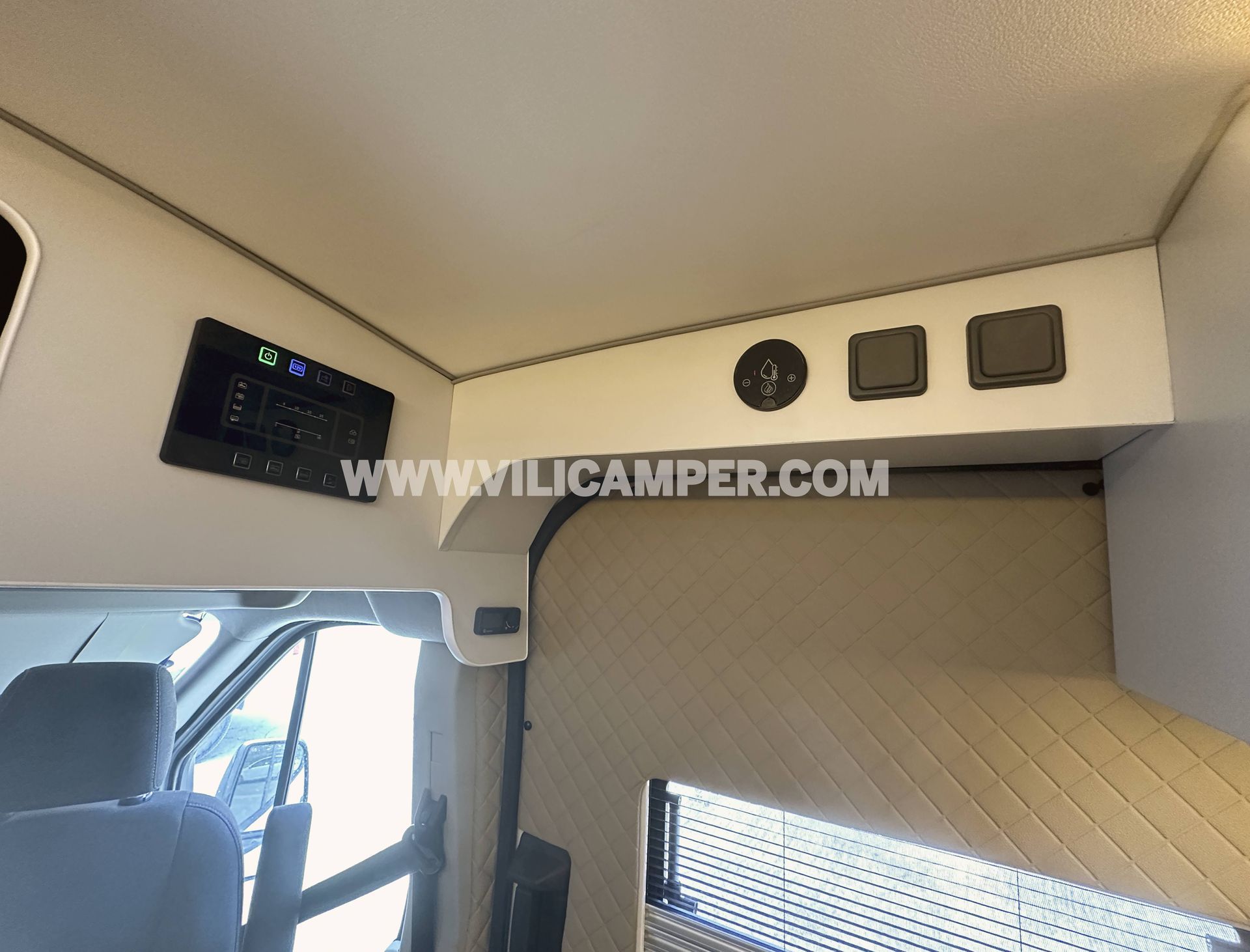

It includes an Autoterm Planar 2kW stationary heater, powered by diesel and controlled via a Comfort Control digital display. A compact and efficient solution for maintaining a comfortable temperature in the cabin all year round.

Water installation

System optimized for daily use, designed to offer reliability, safety and ease of maintenance:

• Shurflo 10 L/min pressure pump.
• Fiamma 0.9 bar expansion vessel.
• 90L clean water tank with external magnetic filling connection.
• 57L grey water tank with angled drain valve.
• John Guest quick-connect fittings, used throughout the installation to prevent leaks and facilitate maintenance.
• Durable pipes and efficient layout to ensure a constant and quiet flow.

Gas installation

Complete installation for kitchen and hot water, with safe gas flow and compliance with current regulations.

Hot water

Installed Whale Expanse 8L gas-powered water heater mounted externally on the vehicle. Provides hot water quickly and efficiently for the shower and sink, without requiring an electrical connection.

Electrical installation

System designed to offer safe and functional autonomy:

• Vechline 115 Ah AGM Battery.
• CBE PC180 control unit.
• 1000W inverter/charger (pure sine wave).
• 220V outdoor socket.
• Indoor sockets 12V, 220V and USB.
• 120W rigid monocrystalline solar panel.
• Victron Smart Solar MPPT 75/15 solar charge controller.

Interior lighting

Complete LED lighting:

• Chrome recessed spotlights.
• 36-light LED panel in the bathroom
• Superior ambient light.
• Iluminación empotrada adicional.
• 2 flexos LED orientables con USB.
• CBE switches for independent control.

Kitchen equipment

Separate and well-equipped kitchen:

• Dometic HBG 2335 gas hob with glass lid and two burners.
• Square black sink measuring 35 x 35 cm.
• Single-lever tap with high spout.
• Dometic NRX80C compressor refrigerator, powerful, quiet and with large capacity.

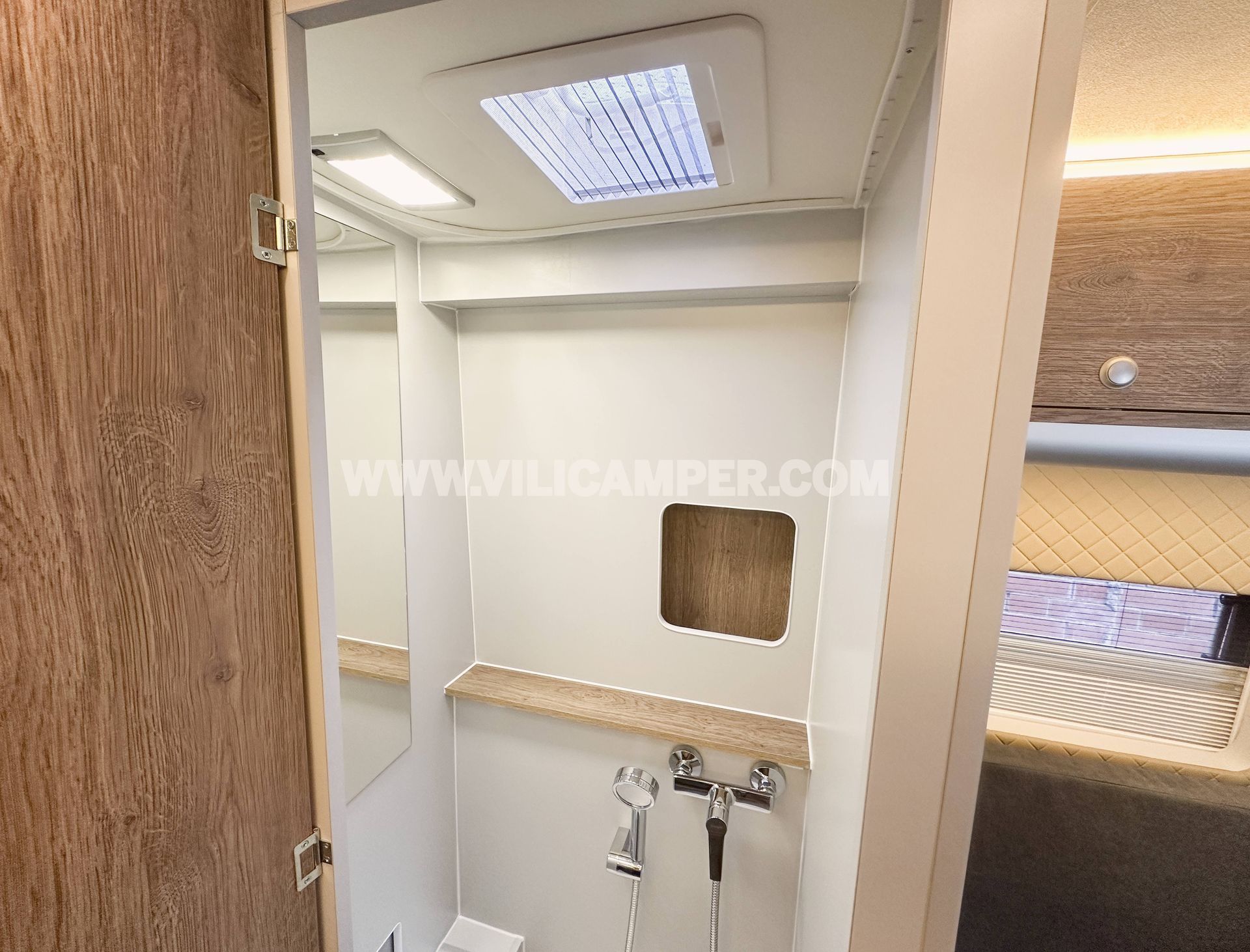

Separate bathroom

Compact and functional space:

• Shower tray.
• Dometic 972 portable toilet with a capacity of 9.8 L of waste.
• Compartment with PVC shutter to conceal it.
• Single-lever shower tap, flexible hose and hanger.
• Mirror measuring 500 x 800 mm.
• Shower curtain rail.

Bedroom:

• Fixed bed with 10 cm mattress in D25 foam.
• Custom-designed bed frame with access to lower storage areas.
• Set optimized for rest and functionality.

Quality in furniture and finishes:

At Vilicamper, we take care of every detail to deliver a professional and lasting result. All the furniture is custom-made for this campervan conversion, allowing us to maximize space and guarantee a perfect finish. We exclusively use high-quality HPL laminated plywood, a durable, lightweight, and easy-to-maintain material that offers a modern and elegant aesthetic. Each piece is precisely manufactured, ensuring a solid assembly, clean edges, and a premium finish. As always, we incorporate top-brand accessories, selected for their reliability and functionality, exceeding expectations on every project.

Extras:

• Antenna TV Glomex Oasis Omni.
• Televisor Telesystem HD 19”.
• Vechline support with double arm.
• 12V socket with CBE TV and SAT antenna.

Approval

Includes complete homologation project as a camper van:

• It complies with current regulations.
• It allows you to legally drive up to 90 km/h.
• Vehicle inspection (ITV) every 6 months starting from 10 years of age.
• Guarantee of safety, legality and peace of mind.
