CAMPERIZACIÓN L2H2 SIN BAÑO

Space optimization for limitless adventures with an extended dining area and a 135cm wide bed

PROJECT

In our latest campervan conversion project, we challenged the norm: Do you really need a bathroom in your camper? Our client didn't think so, and the results are amazing. They opted to remove the bathroom to maximize space and storage, prioritizing versatility and comfort on every trip. From cozy seating areas to a well-equipped kitchen, every corner has been carefully designed to offer maximum functionality without sacrificing comfort.


The decision to eliminate the bathroom was based on smart planning. Instead of dedicating valuable space to a bathroom, we created a design that allows for greater freedom of movement and unparalleled flexibility on the road. This approach enabled us to create a welcoming and functional environment, perfect for weekend getaways and extended holidays.


Furthermore, we can't forget to mention the comfort of the main bed – a spacious 135cm wide bed! With a quality mattress and enough room for two people, this bed becomes the perfect retreat after a day full of adventures.


What does this mean for you as a traveler? It means you can enjoy an unparalleled camping experience, with more space for what truly matters: exploration and adventure. Without compromising comfort, this camper without a bathroom offers the freedom to discover new destinations without worrying about limitations.


Furthermore, thanks to the L2H2 configuration, the dining area is significantly enlarged, providing a more comfortable and versatile space to enjoy meals and relax during your travels. With this clever layout, time spent inside the camper becomes an even more pleasant and welcoming experience.


It's time to leave conventional standards behind and embark on an unrestricted adventure! With our campervan conversion without a bathroom, the road is yours to explore, and the space is designed to suit your needs and preferences.


Discover a new way to travel, where freedom and versatility go hand in hand.


Join us on this exciting adventure!


DETAILED EQUIPMENT

    • 4 travel seats
    • 4 sleeping berths
  • INSULATION, PANELING AND FLOORING

    • Insulation of walls, ceiling and floor with 20mm and 10mm Kayflex
    • Ceiling paneling in 5mm plywood
    • Door paneling in fiberglass
    • Floor paneling in 15mm plywood and finished with seamless vinyl flooring
  • SEATS, BASES AND STRUCTURES

    • Pilot's swivel base
    • Passenger's swivel base
    • Rear 2-seater structure with isofix
  • SKYLIGHTS AND WINDOWS

    • 2 Dometic Mini Heki Style 40x40 cm skylights
    • 2 Seitz S4 700x450 mm tilt and turn windows with mosquito net and blackout blind
  • AIR CONDITIONING

    • Planar 2Kw heating with digital control
  • WATER

    • Fresh water tank
    • Grey water tank
    • External water filling point
    • John Guest installation to prevent water loss and leaks
    • Shurflo 10 L pump
    • Hot and cold outdoor shower
    • Gas water heater
  • 12V/220V ELECTRICITY

    • CBE PC 180 Control Unit
    • 600W Modified Sine Wave Inverter/Charger
    • 1 x 100Ah Lithium Battery
    • LED Lighting Panels
    • 220V Sockets
    • USB Port
    • 200W Monocrystalline Solar Panel
    • Victron MPPT Regulator
    • 220V Outdoor Camping Socket
  • APPLIANCES AND KITCHEN

    • Dometic 80 liter refrigerator
    • Dometic HBG2335 freestanding cooker
    • 35x35 freestanding sink with high spout tap
  • DOMINATE

    • Upper bed folds down and folds down with safety systems
    • Standard density foam mattresses
    • Lower bed 135 cm wide
  • LAYOUT AND FURNITURE

  • Furniture made of high-quality HPL plywood, edged with rubber and PVC edging and finished with aluminum corner pieces.

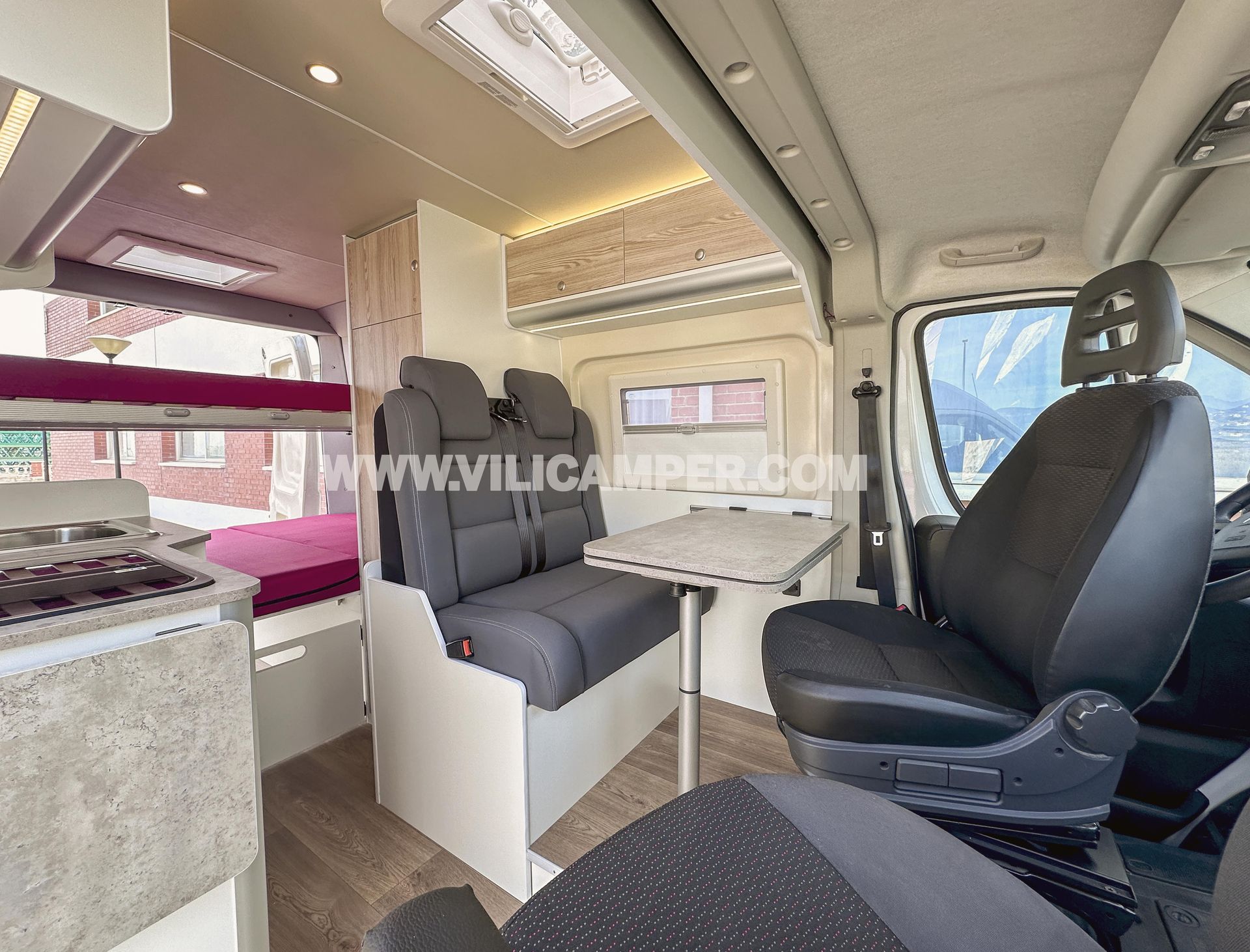

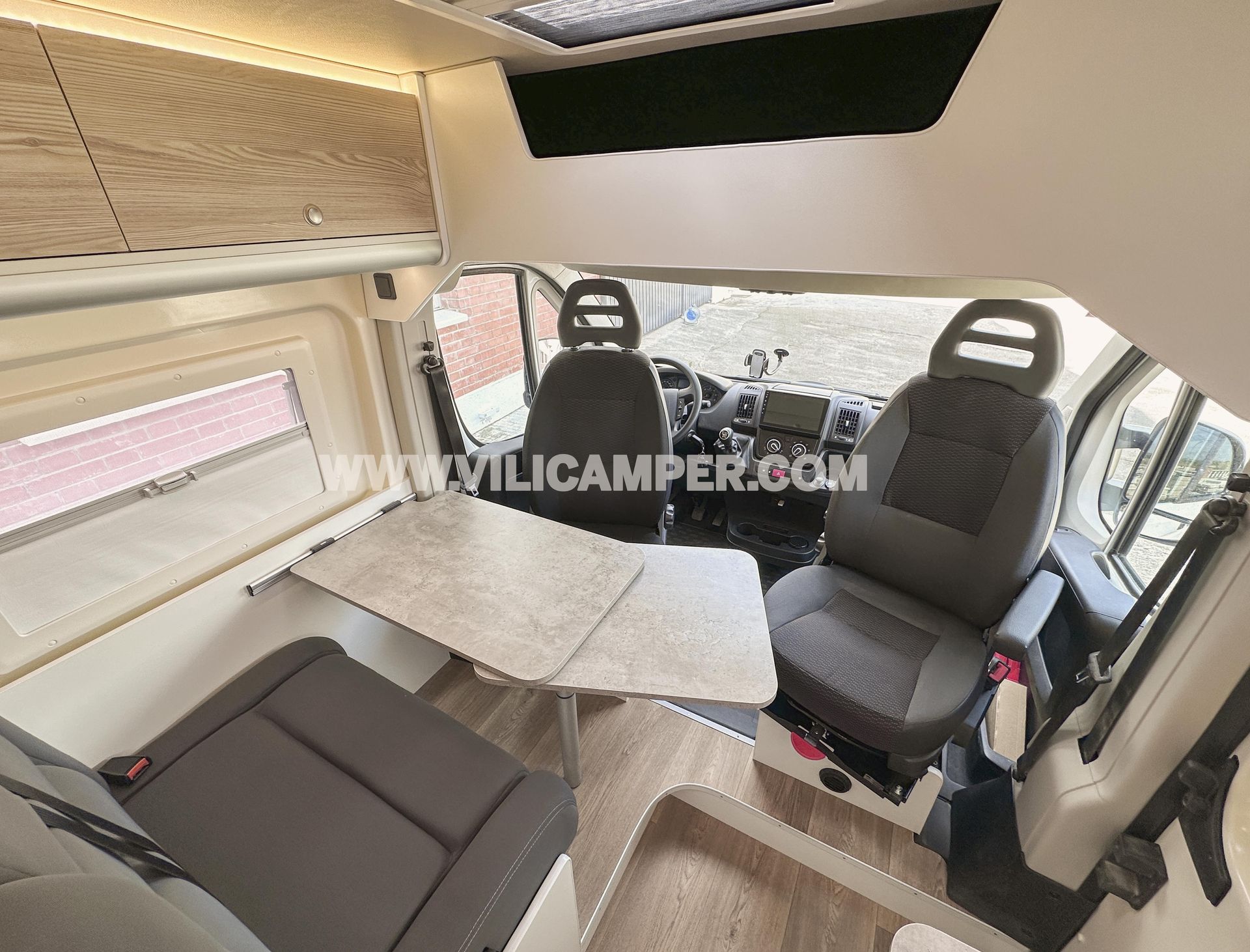

  • Spacious, comfortable, and versatile dining area for 4 adults with overhead storage

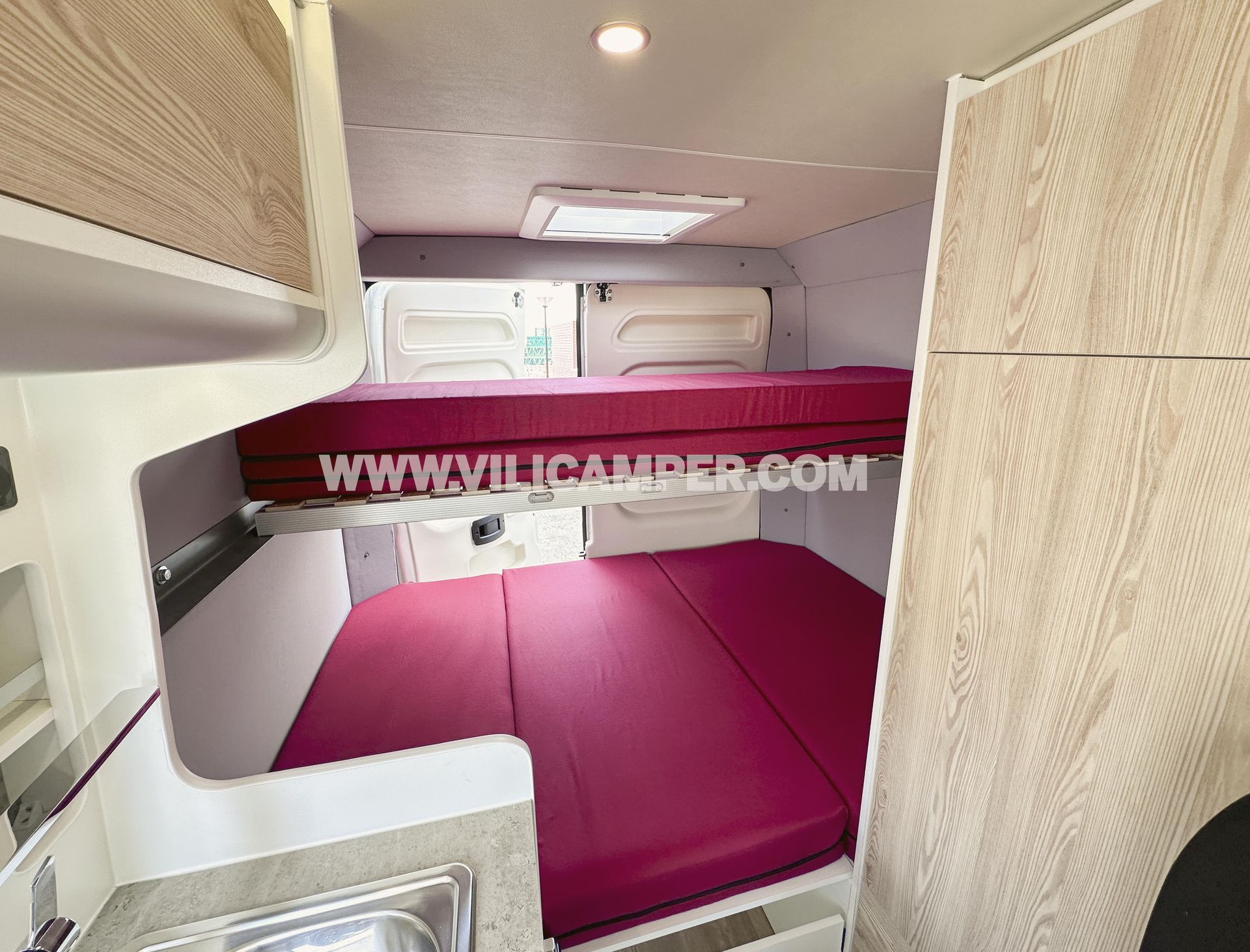

  • Large 135cm wide bed with a pull-out and fold-down upper bunk

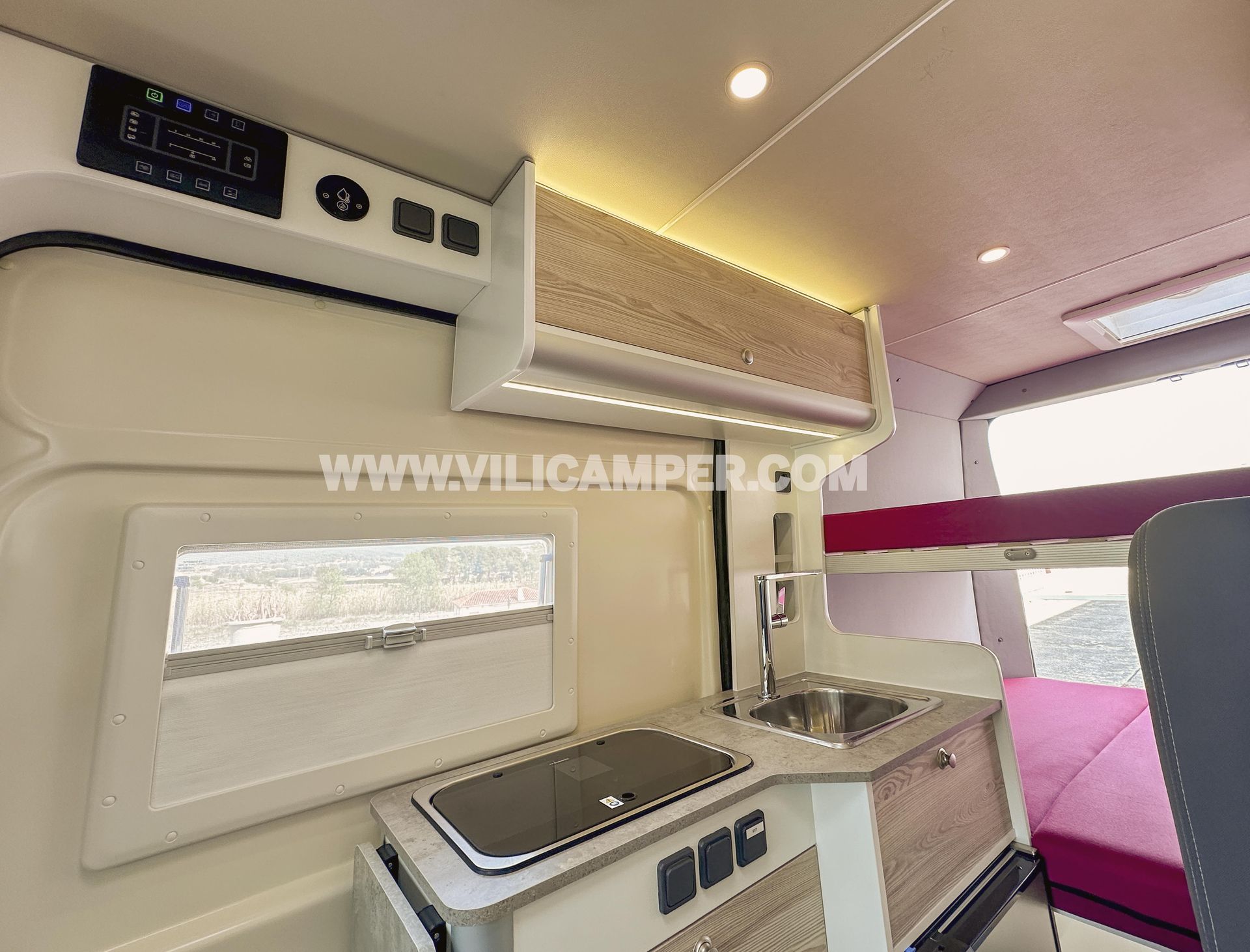

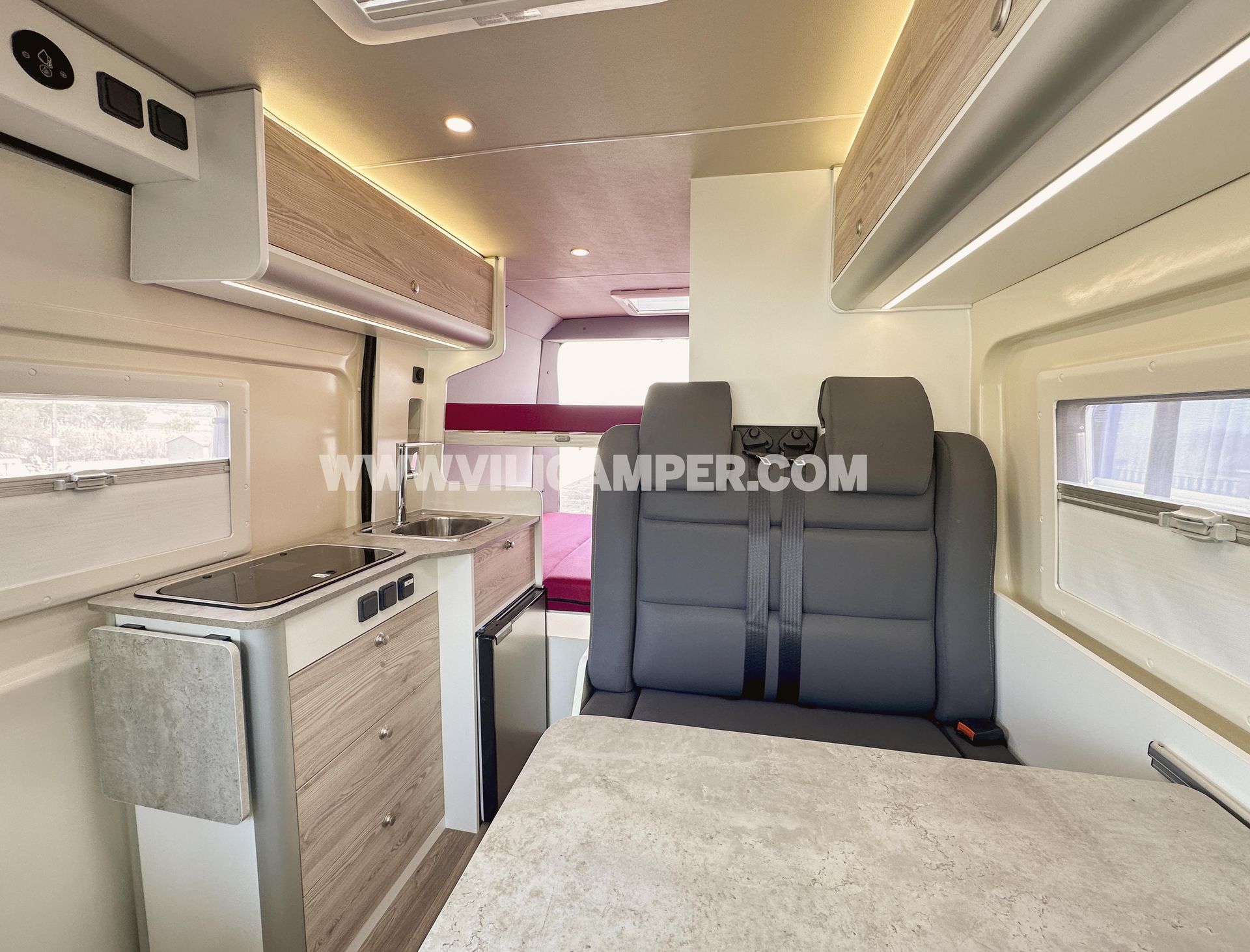

  • Separate 2-burner stove complete with several drawers and overhead storage cabinets, and a separate sink with a high-arc faucet for added convenience
  • Spacious wardrobe with 2 lower drawers
  • Large-capacity, fold-down rear storage boxes with a fold-down center section for bulky items
