RENAULT MASTER WITH OPEN BATHROOM

PROJECT

This time, we want to present one of our campervan conversions in a Renault Master, designed to the customer's taste with a complete equipment package for traveling 3 people.

In this project, our team of experts worked closely with the client to understand their needs and preferences. Using the information we gathered, we designed a space that perfectly suited their requirements. The Renault Master was transformed into a functional and welcoming vehicle, with all the comforts needed for traveling and living in it.


The complete package includes the installation of a second battery in the vehicle to power the camper's electrical devices and provide energy-efficient interior lighting, along with a control unit to monitor battery charge levels, water tank levels, and the pump. It also features a fully equipped kitchen with a stove, sink, and refrigerator.

Instalamos un sistema de calefacción a gasoil para garantizar que el interior del vehículo esté cálido y confortable en cualquier época del año junto con el aislamiento del vehículo que permite mantener la temperatura interior constante, lo que resulta un ambiente más confortable y agradable. Además, el aislamiento también ayuda a reducir el ruido exterior, lo que mejora la calidad del sueño y el descanso.


A hot water system has also been installed, supplying both the shower and the kitchen sink. A solar panel on the vehicle's roof generates clean, renewable energy, eliminating the need to rely on external power outlets to charge devices or power the auxiliary battery. This allows for greater autonomy and freedom while traveling.


Skylights have also been added to the roof to allow natural light and fresh air into the vehicle. These skylights have blinds and mosquito nets to control the amount of light and air entering the vehicle.

For accommodation, we've designed a spacious dining area that can be converted into a comfortable bed for three people. The versatility of this configuration allows you to make the most of the available space, providing the rest and relaxation you need after a long day of travel.


In summary, in this project we have created a custom-made Renault Master with all the necessary comforts for traveling and living in it.


Our goal is always to meet our customers' expectations by offering customized solutions that fit their needs and budgets. If you're interested in converting your vehicle into a camper, don't hesitate to contact us.


We'd be delighted to help you with your next life-on-the-road project!


DETAILED EQUIPMENT

    • 3 travel seats
    • 2 sleeping berths
  • INSULATION, PANELING AND FLOORING

    • Insulation of walls, ceiling and floor with 20mm and 10mm Kayflex
    • Ceiling paneling in 5mm plywood
    • Wall paneling in 5mm plywood
    • Door paneling in 5mm plywood
    • Floor paneling in 15mm plywood and finished with seamless vinyl flooring
  • SKYLIGHTS AND WINDOWS

    • 1 Claraboya Dometic Micro Heki 28x28 cm
    • 1 Claraboya Dometic Mini Heki Style 40x40 cm
  • AIR CONDITIONING

    • Planar Autoterm 2kW heating system
    • Whale hot water boiler
  • WATER

    • 98 L fresh water tank
    • 53 L grey water tank
    • External water filling inlet
    • John Guest installation to prevent water loss and leaks
    • Fiamma 10 L pump
  • 12V/220V ELECTRICITY

    • CBE PC 180 Control Unit
    • 600W Modified Sine Wave Inverter
    • 1 100 Amp Battery
    • LED Panel Lighting
    • 220V Sockets
    • 12V Socket
    • USB Socket
    • 160W Monocrystalline Solar Panel
    • Victron MPPT 75/15 Amp Regulator

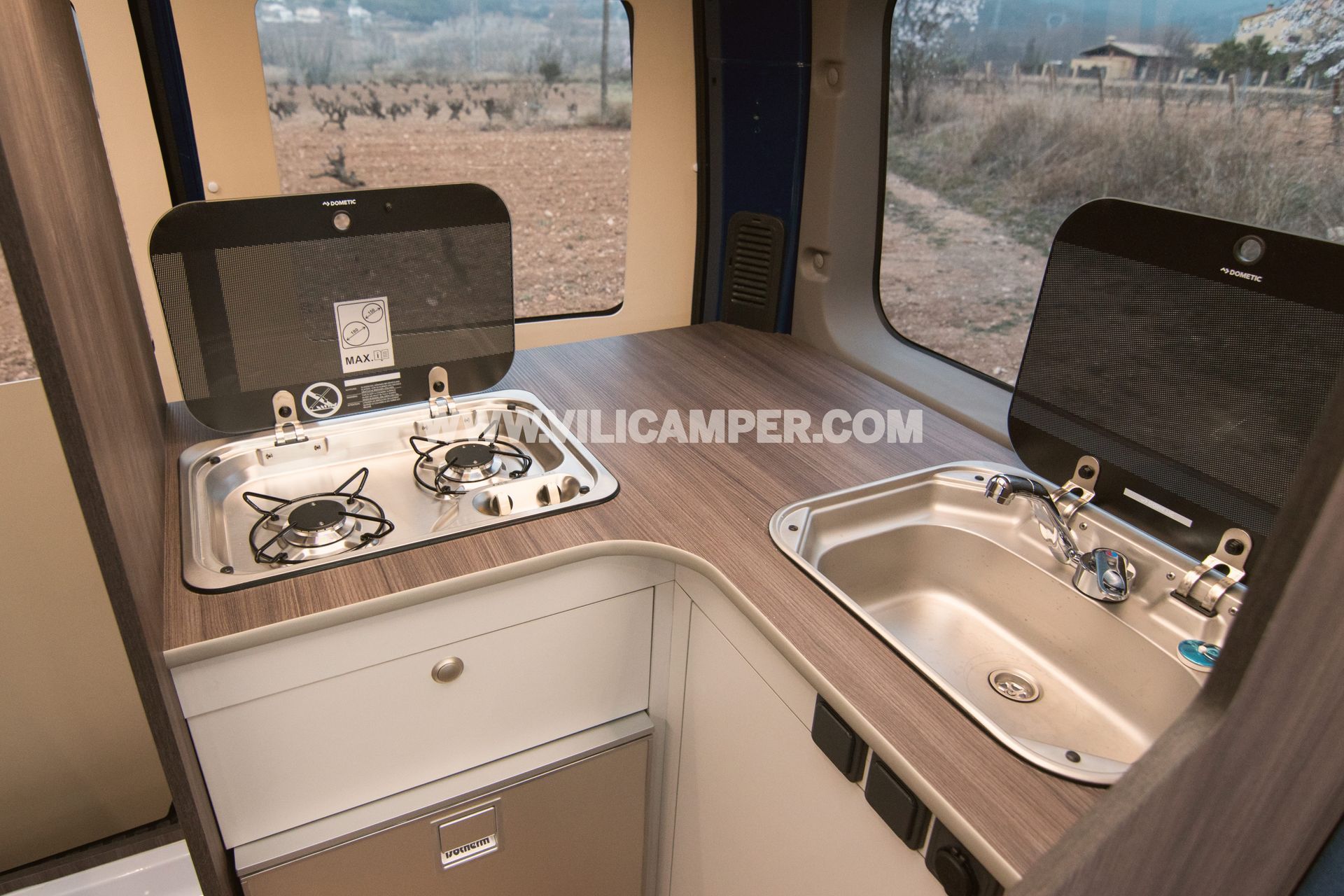

  • APPLIANCES AND KITCHEN

    • Webasto 85 liter refrigerator
    • Dometic 2-burner cooktop
    • Dometic sink

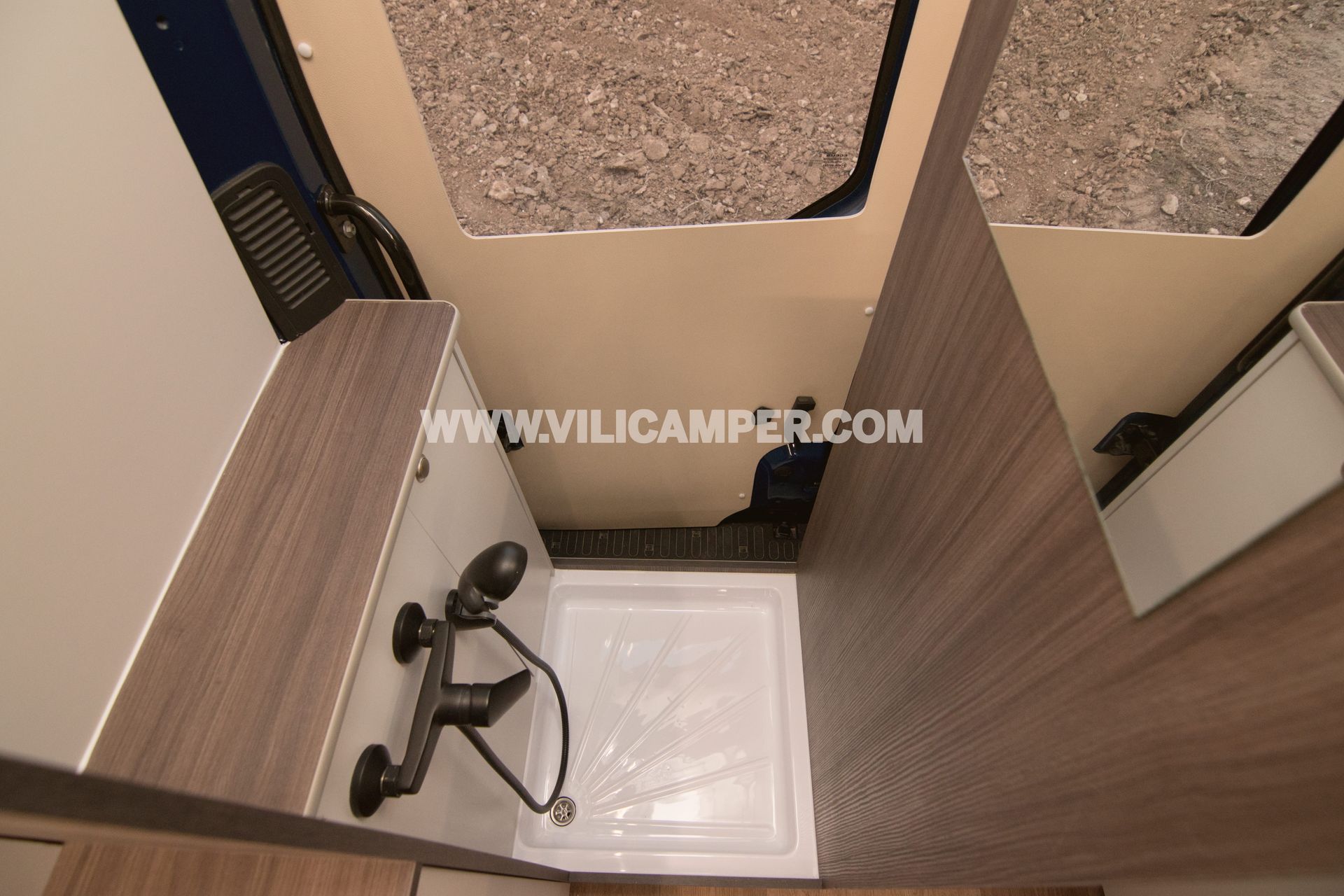

  • BATHROOM

    • Shower tap hose shower head
    • Shower tray
    • Mirror
    • Open bathroom
  • DOMINATE

    • Fold-down bed 190 x 130 cm
    • Standard density foam mattresses
    • Dining bed
  • LAYOUT AND FURNITURE

    • Dining area convertible into a bed
    • Storage cabinets above the dining area
    • Corner kitchen unit with drawers, cupboards and various storage cabinets
    • Full bathroom with shower and vanity
    • Side storage unit with countertop and cabinets
