CITROËN JUMPER L3H2 4-SEATER CAMPER CONVERSION


PROJECT


Transform your L3H2 van into an oasis on wheels with our complete camper conversion project. Designed to travel and accommodate up to four people, this comprehensive system offers heating, hot water, a fully equipped kitchen, and more. With solar panels, an inverter, and an external camping hookup, you'll be self-sufficient on any adventure. Enjoy natural light through strategically placed skylights and windows. This project combines functionality and comfort to create a versatile and inviting space. The freedom of the open road meets the comfort of home, allowing you to explore without limits. Get ready to experience stylish and comfortable travel in your own custom camper van. Discover a new dimension of life on wheels!


DETAILED EQUIPMENT

    • 4 travel seats
    • 4 sleeping berths

  • INSULATION, PANELING AND FLOORING

    • Aislamiento de paredes, techo y suelo con Kayflex de 20mm y 10mm
    • Panelado techo en contrachapado 5mm
    • Panelado paredes en contrachapado 5mm
    • Panelado puertas en fibra de vídrio
    • Panelado suelo en contrachapado de 15mm y acabado en suelo vinílico sin juntas

  • SEATS, BASES AND STRUCTURES

    • Swivel bases for driver and passenger
    • Rear 2-seater structure with isofix and high-quality foam

  • SKYLIGHTS AND WINDOWS

    • 1 Dometic Micro Heki skylight 28x28 cm
    • 1 Dometic Mini Heki Style skylight 40x40 cm
    • 2 Seitz S4 tilt-and-turn windows with mosquito net 700 x 450 cm
    • 2 Seitz S4 tilt-and-turn windows with mosquito net 500 x 450 cm

  • AIR CONDITIONING

    • Calefacción Planar 2Kw

  • WATER

    • Depósito de aguas limpias de 104 L
    • Depósito de aguas grises 78 L
    • Bocana de llenado de agua exterior
    • Instalación Jonh Guest para evitar perdidas de agua y fugas
    • Bomba Shurflo
    • Boiler de agua caliente 8 litros whale

  • 12V/220V ELECTRICITY

    • CBE PC 180 Control Unit
    • 600W Modified Sine Wave Inverter/Charger
    • 1 100 Amp Battery
    • LED Lighting Panels
    • 220V Outlets
    • 12V Socket
    • USB Socket
    • 200W Monocrystalline Solar Panel
    • Victron MPPT 75/15 Amp Regulator

  • APPLIANCES AND KITCHEN

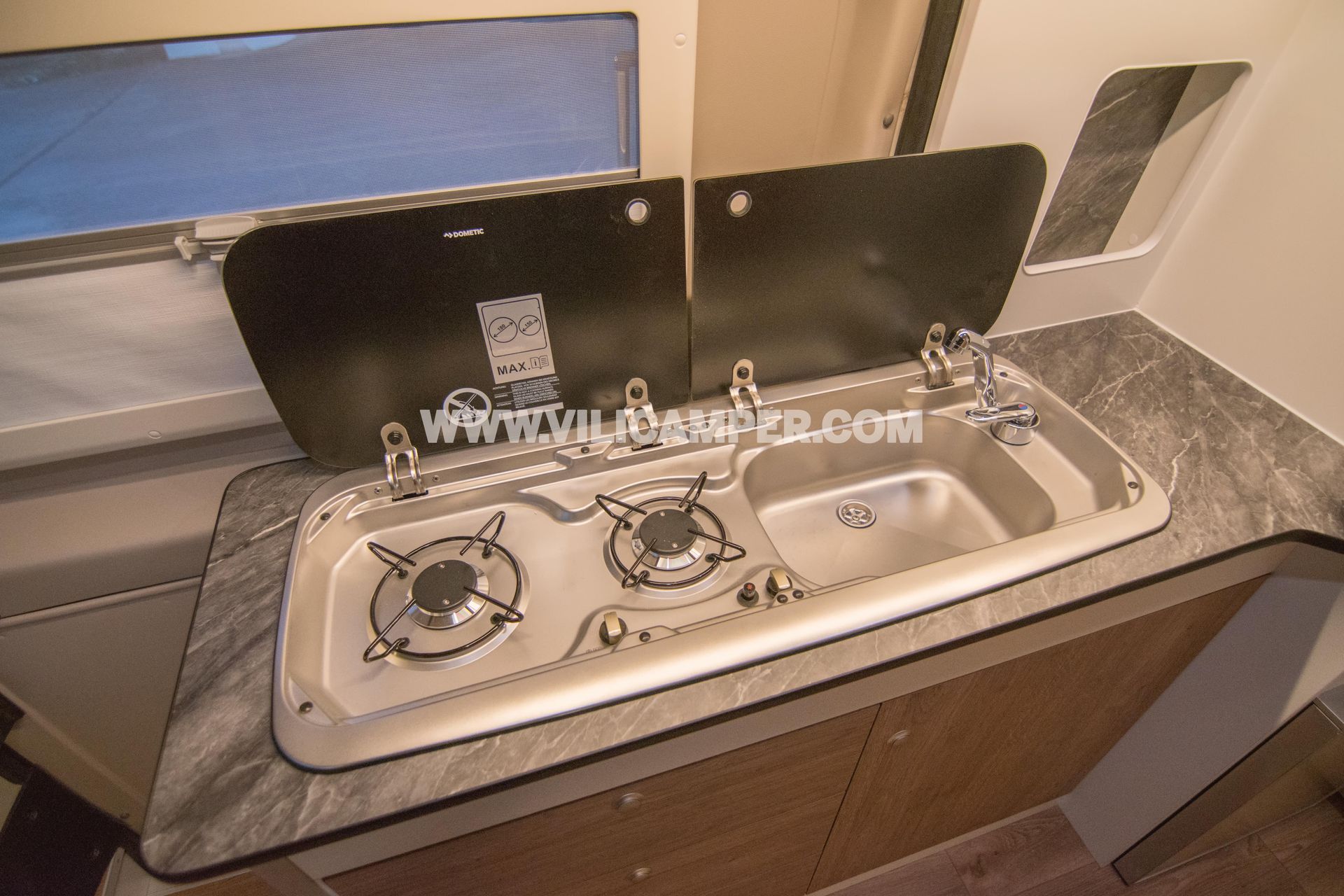

    • Dometic M09722 combination sink with 2 burners and glass lid
    • Florenz folding kitchen mixer tap
    • Webasto Cruise Elegance 85-liter 12V compressor refrigerator with a small separate freezer

  • BATHROOM

    • Shower tray
    • Cold/hot water mixer tap with flexible hose and shower head
    • Fixed toilet
    • External compartment for cassette removal
    • Wooden soap dishes, mirror and shower curtain rails

  • DOMINATE

    • Foldable and removable upper bunk
    • Standard density foam mattresses
    • Full upholstery of the entire bedroom, walls and corners, for extra comfort and warmth.

  • LAYOUT AND FURNITURE

    • All furniture is made of plywood with a high-quality HPL finish.
    • Edge banding with PVC and rubber.
    • Handles with push-button closures.
    • Wooden trim pieces to cover the metal base of the front seats.
    • Open module above the cab with ample storage.
    • Overhead cabinet above the dinette with two hinged doors.
    • Storage dinette module above the rear two-seater frame.
    • Dinette for four people with a removable table and fold-out extension.
    • Overhead cabinet above the kitchen with one hinged door.
    • Lower kitchen unit with three large storage drawers and a cupboard with shelving.
    • Refrigerator unit with one large storage drawer.
    • Separate bathroom cubicle with a wooden door.

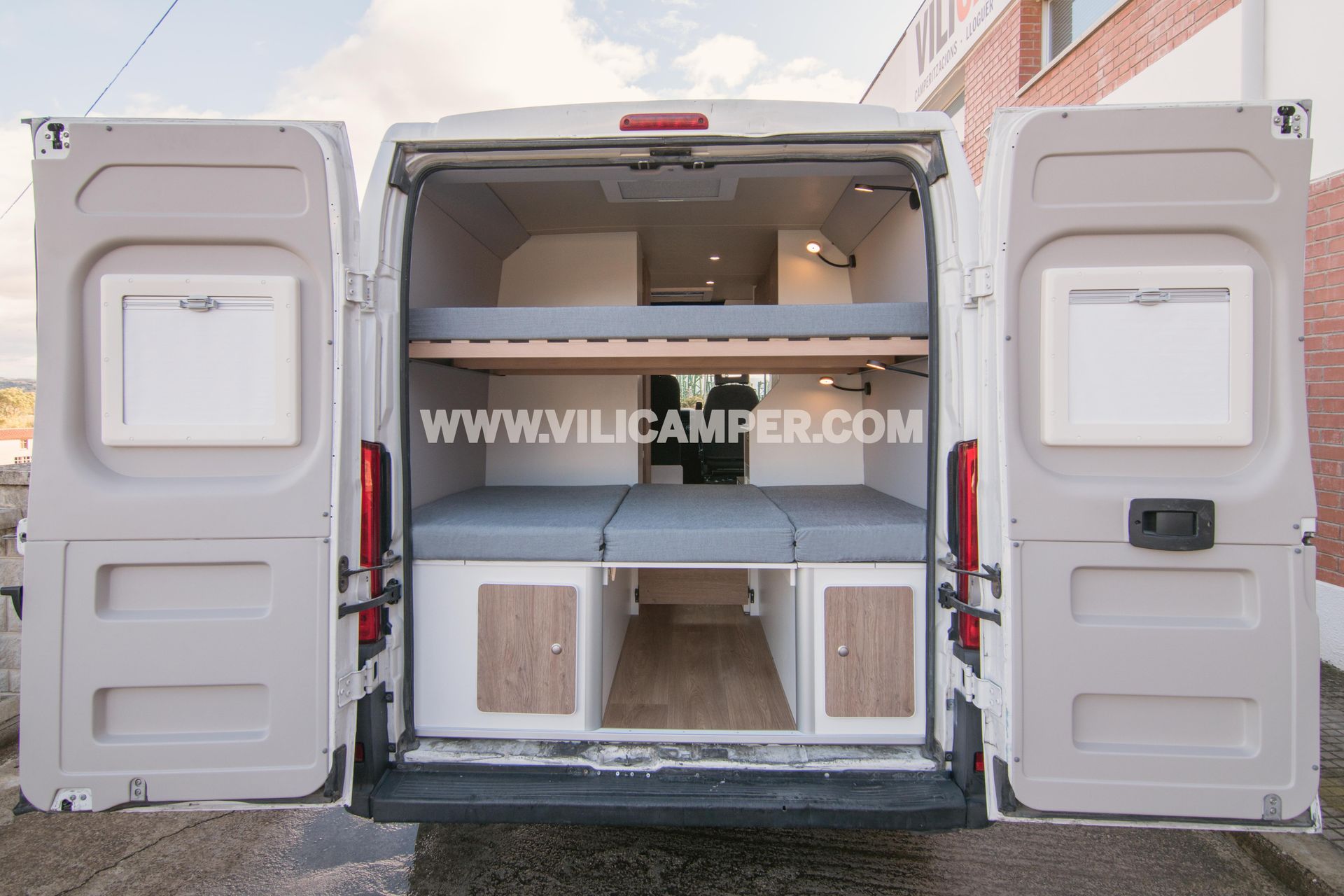

    • Lower double bed with a fold-down center section for bulky items.
    • Removable cargo safety panel to prevent cargo movement in case of emergency braking.
    • Fold-down rear storage box on the passenger side.
    • Fold-down rear storage box on the driver side with a door. rear access
