CAMPER CONVERSION

FIAT DUCATO

L3H2

3 travel seats, 4 sleeping seats

Full bathroom

Hot water and diesel heating

Litera extrudable

Fiat Ducato L3H2 Camper Van

In this case, we kept the vehicle's original three seats, custom-fitting only the rear section. It's fully equipped to sleep four adults, with a spacious dining area and a table that converts into a long sofa with ample storage compartments. The lower bunk has been extended with upholstered storage compartments to provide extra legroom and more comfortable sleeping space for taller people or those who prefer to stretch out.

DETAILED DESCRIPTION

    • 3 travel seats
    • 4 sleeping berths
  • SEATS, BASES AND STRUCTURES
    • Original front seats of the vehicle.
  • INSULATION, PANELING AND FLOORING
    • Insulation of walls, ceiling, and floor with 20mm and 10mm Kayflex.
    • Ceiling paneling in 5mm plywood.
    • Wall paneling in 5mm plywood and upholstered with foam.
    • Door paneling in fiberglass.
    • Floor paneling in 15mm plywood and finished with seamless vinyl flooring.
  • SKYLIGHTS AND WINDOWS
    • Claraboya Fiamma Turbo Vent  160 Crystal 39x39 cm
    • Claraboya Dometic Micro Heki 28x28 cm
    • Claraboya Mini Heki Style 40x40 cm
    • Ventana Dometic Seitz S4 900x500 cm puerta corredera
    • Ventana Dometic Seitz S4 900x500 cm zona comedor
  • AIR CONDITIONING
    • Truma Combi 6 Diesel heating and hot water
  • WATER
    • 80L fresh water tank
    • 90L grey water tank
    • External magnetic water filling valve
    • Shurflo 10 liter water pump
    • Expansion vessel
  • 12V/220V ELECTRICITY
    • CBE PC 180 Control Unit
    • 600W Modified Sine Wave Inverter/Charger
    • 100 Amp AGM Battery
    • LED Lighting Panels
    • 220V Outlets
    • USB Port
    • 160W Solar Panel and 20 Amp Regulator
    • 220V External Socket
  • GAS
    • Gas installation for kitchen

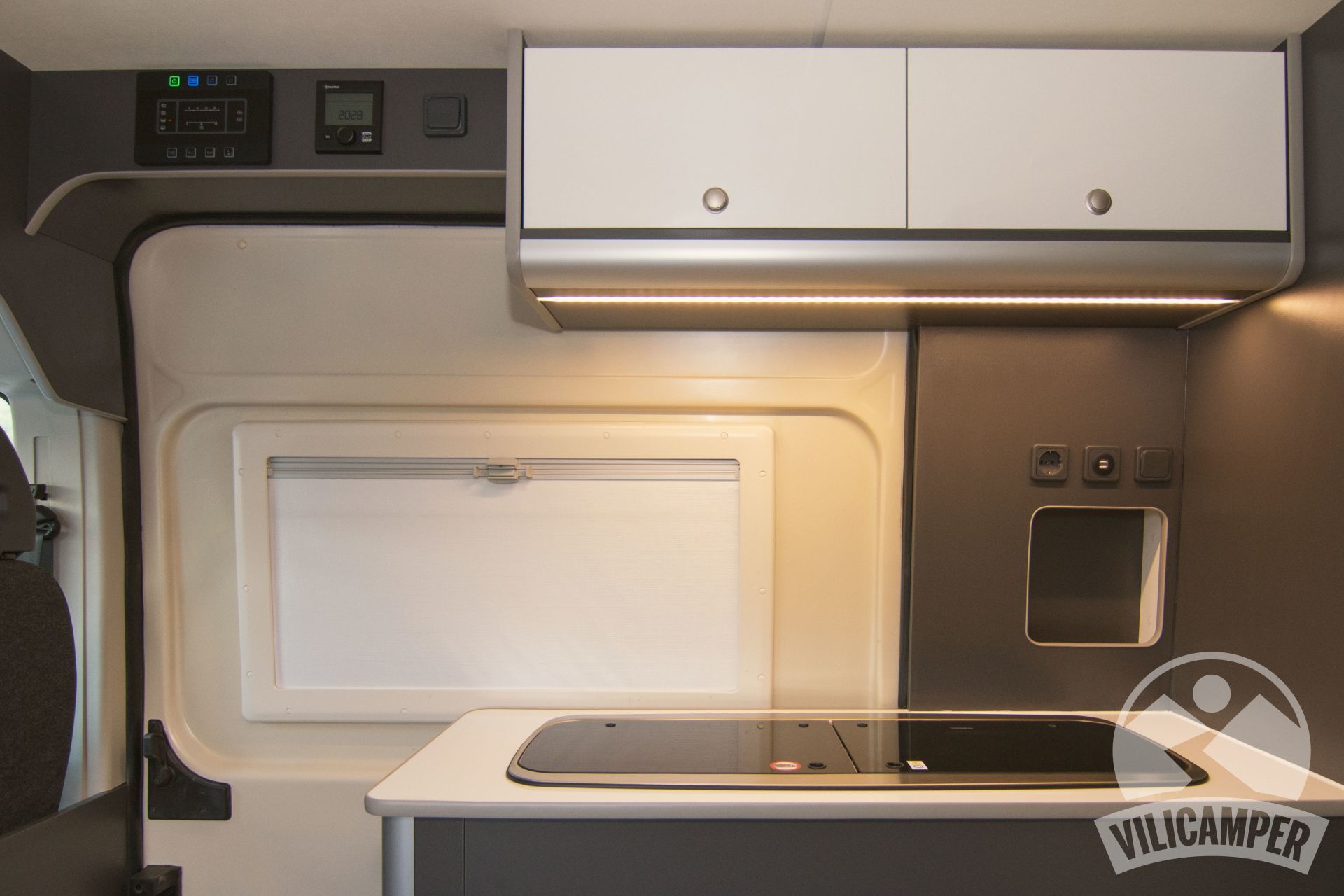

  • APPLIANCES AND KITCHEN
    • Dometic HSG 2370R sink cooker
    • Dometic CRX 80 liter refrigerator

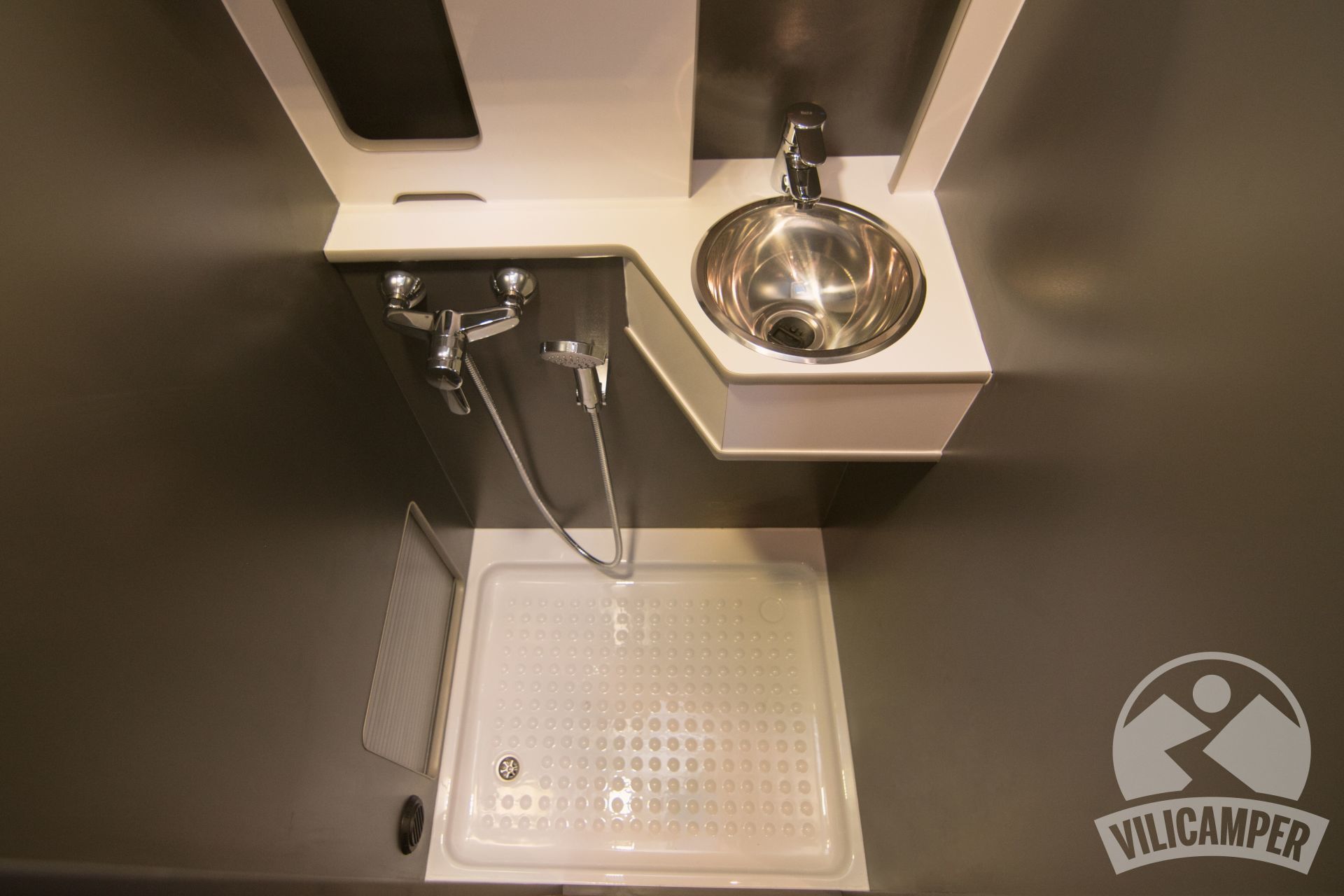

  • BATHROOM
    • Dometic 972 Toilet
    • Interior service door with PVC shutter
    • Independent shower tap
    • Independent basin tap
    • Shower tray
    • Custom-made vanity unit with mirror
    • Wooden soap dishes
    • Shower curtain rails
  • DOMINATE
    • Lower bunk 182 x 127 cm extension
    • Extension with upholstered recesses in the lower bunk to gain a few extra centimeters and provide more comfortable rest for taller people or those who like to sleep stretched out. Total 192 cm.
    • Upper bunk 179 x 114 cm
    • HR VISCO density foam mattresses
    • Full upholstery of the entire bedroom, walls and corners, for added comfort.
  • LAYOUT AND FURNITURE
    • HPL plywood with PVC edging and rubber edging
    • 2 rear storage compartments under the bed
    • Removable upper bunk
    • Loft with double doors at the foot of the upper bunk
    • Lower kitchen cabinet with 3 large drawers and 1 door under the sink
    • 1 large storage loft in the kitchen with double doors
    • 1 wardrobe with 3 shelves
    • 1 dining area loft with 3 large doors
    • Table convertible into a chaise lounge sofa
    • Sofa module with large storage compartments
    • Separate full bathroom with soap compartments
  • SECURITY
    • Cierre de seguridad exterior Thule portón trasero y puertas corredera
