MAN TGE 4x4 L3H3 – KRAKATOA
KRAKATOA 4x4 by Vilicamper
A MAN TGE 4x4 L3H3 transformed with our Krakatoa camper conversion, designed to combine comfort, autonomy and the possibilities offered by a 4x4 base.
Inside we find a fully equipped space for traveling and living comfortably, with a 200 Ah lithium battery, Autoterm 4 kW heating, hot water, kitchen, full bathroom, 90 liter refrigerator and a large capacity water installation.
En el exterior, las extensiones laterales Atek, llantas Black Rhino Warlord de 17", neumáticos Michelin Agilis CrossClimate, soporte de rueda y sistema portabicicletas terminan de darle un carácter más aventurero y funcional.
The result is a Krakatoa prepared to enjoy both long road trips and getaways to the mountains, snow or terrain where 4x4 traction provides that extra safety and capability.
Main features of camper conversion

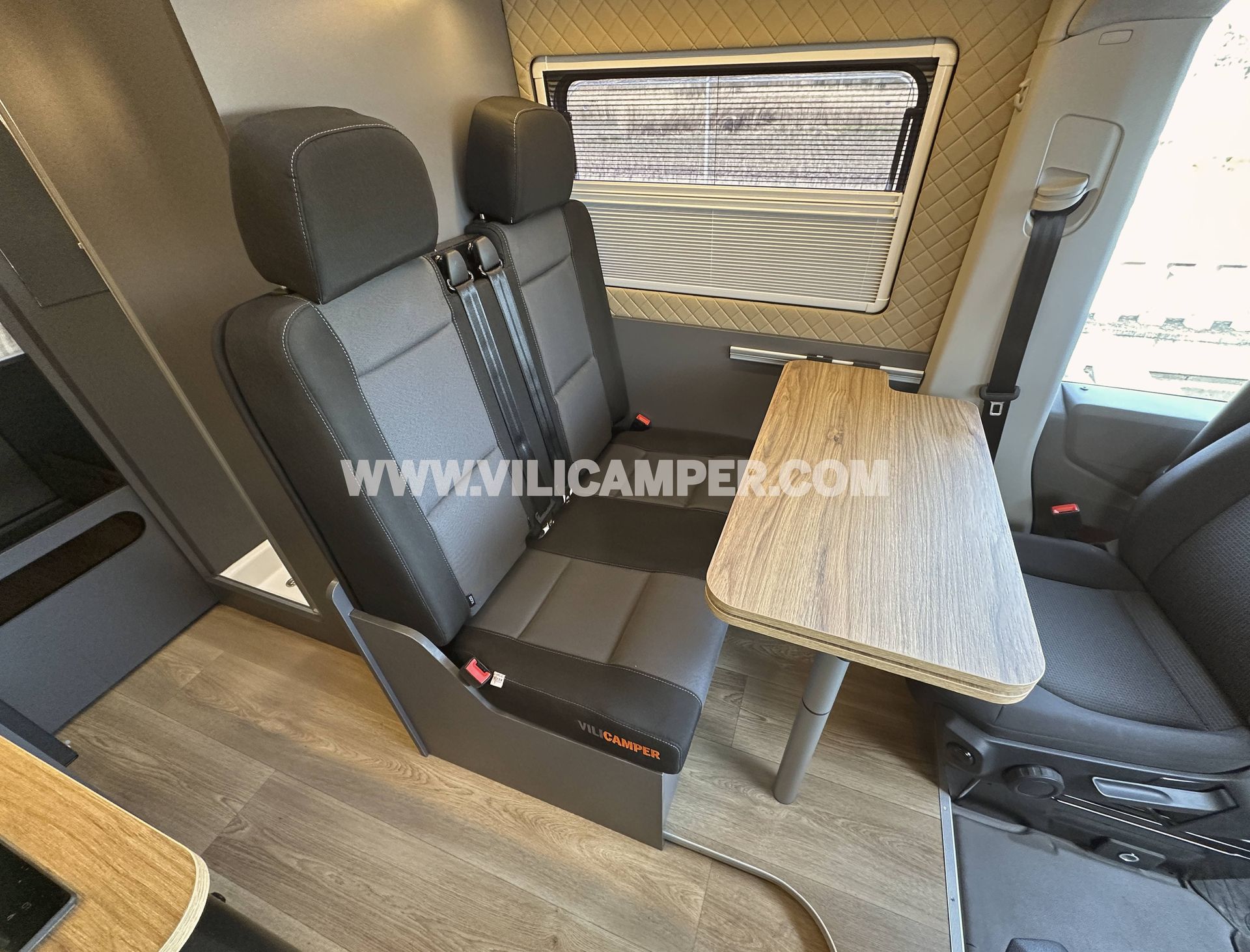

Places:
Capacidad para 4 personas en viaje, con asiento trasero de 2 plazas equipado con estructura OKB, asiento ergonómico y anclajes Isofix.
For rest, it has a rear bed with a custom-made mattress 10 cm thick.
Insulation and paneling:
Complete insulation of walls, ceiling and floor with 20/10 mm Kaiflex, improving the thermal and acoustic comfort of the cabin.
The interior combines 15mm plywood flooring finished in PVC vinyl, a beige CPL ceiling and upholstered panels on doors and dining area, achieving a durable and careful finish.
Ventilation and natural light:
It has three skylights: Dometic Mini Heki 40 × 40 cm, Dometic Micro Heki 28 × 28 cm and MaxFan 40 × 40 cm, the latter providing active ventilation of the cabin.

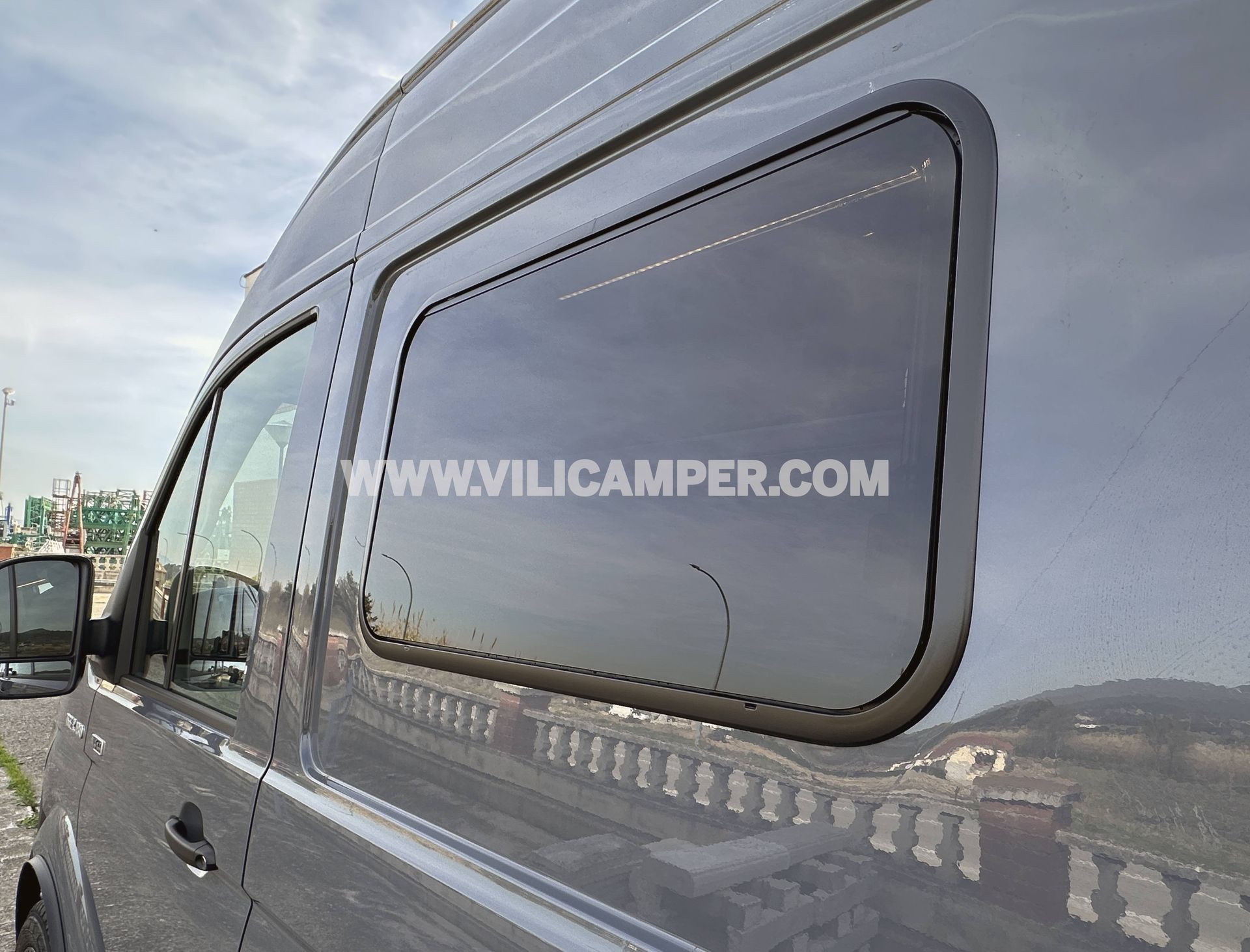

It is completed with three windows, all with their corresponding stores.
Air conditioning:
Equipped with a 4 kW Autoterm stationary heater with Comfort Control digital control. A powerful and efficient system to maintain a comfortable temperature inside during the coldest months.
Water installation:
It has 133 and 110 liter tanks, a 10 l/min Shurflo pressure pump and an expansion vessel, as well as an external connection for filling with clean water and a grey water drainage system.
For hot water, it includes an 8-liter Whale Expanse gas boiler, as well as an outdoor shower with hot and cold water, especially practical after outdoor activities.
Electrical installation:
Electrical system equipped with a 200 Ah lithium battery, CBE PC380 digital control unit and Victron booster for charging the auxiliary battery while driving.
It also includes a Victron MultiPlus inverter-charger, 12V, USB and 230V sockets, external grid connection and a monocrystalline solar panel with a Victron SmartSolar regulator.
Interior lighting:
Toda la iluminación está diseñada con tecnología LED de bajo consumo, combinando focos empotrados, iluminación ambiente superior y luz integrada en diferentes zonas del mobiliario.
It also incorporates two adjustable LED flexible lamps with USB, especially practical as a reading light in the rest area.

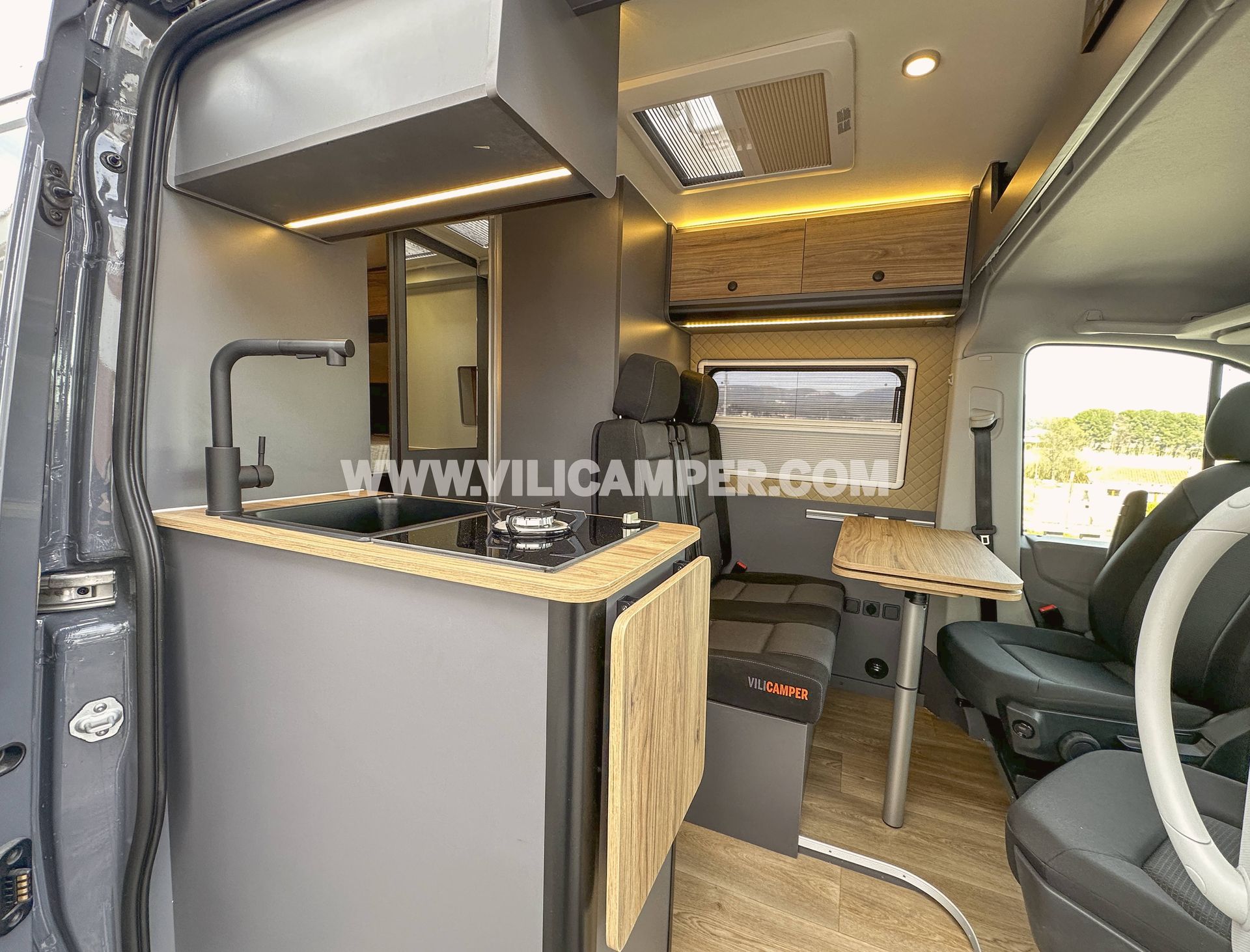

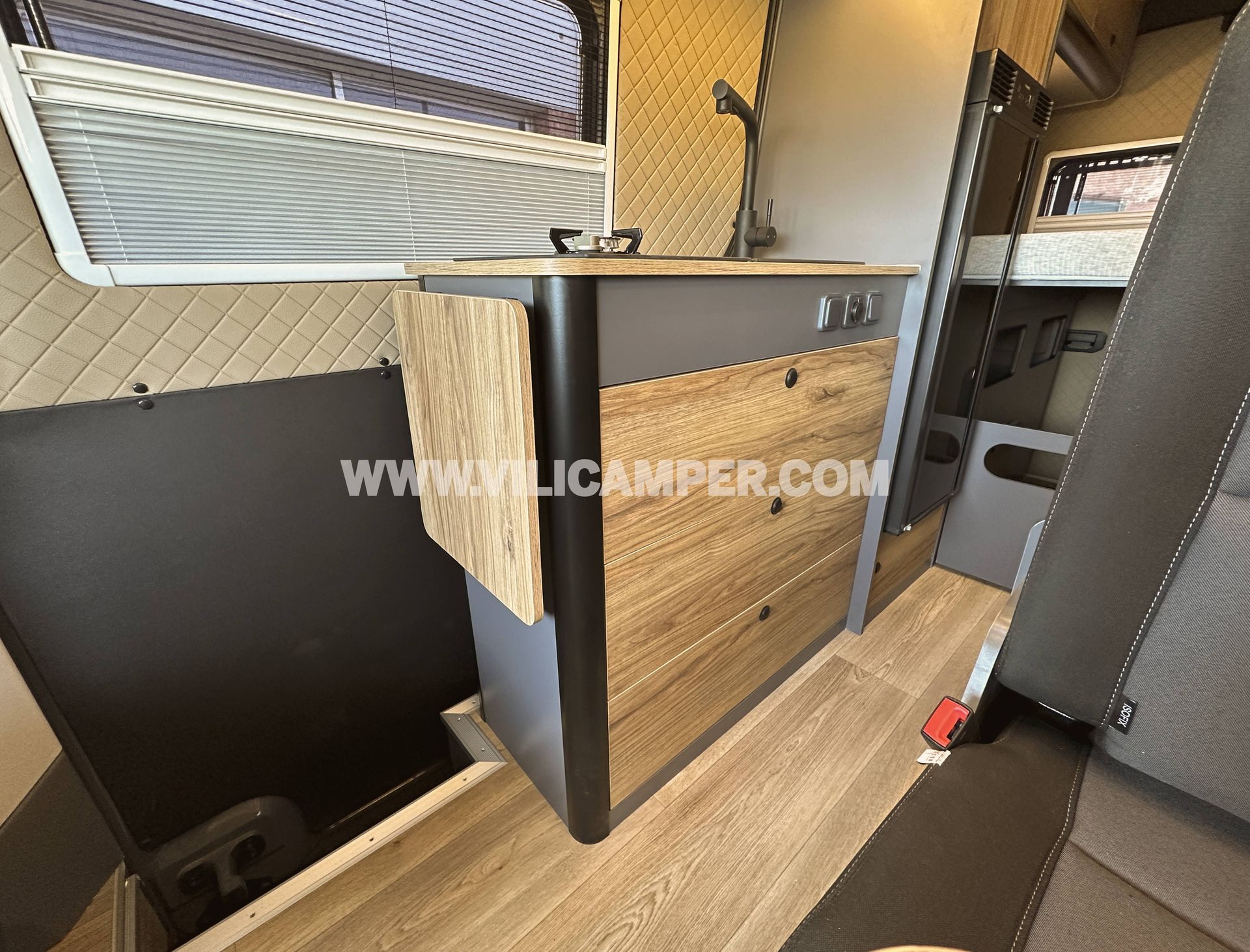

Kitchen equipment:
Kitchen equipped with Thetford Topline 910 1-burner hob, 35 x 35 cm black independent sink and high spout single-lever tap.
It is complemented by a 90-liter Dometic compressor refrigerator, offering a compact, practical kitchen with good storage capacity.
Separate bathroom:
Complete bathroom equipped with Thetford C223 CS fixed toilet, high quality shower tray, shower tap with hose and hanger, mirror and shower rail.
The set is completed with a silver PVC shutter with magnetic closure and an external Thetford service door.
Bedroom:
The rear area is designated for the master bedroom, with a transverse bed and a custom-made mattress 10 cm thick.
The Atek side extensions allow you to gain usable width in this area and make better use of the available space in the MAN TGE, improving the comfort of the bed without unnecessarily penalizing the rest of the cabin.
Quality in furniture and finishes:
All the furniture is designed and manufactured specifically for the KRAKATOA layout on MAN TGE 4x4 L3H3, seeking to make the most of the interior volume and achieve a good balance between habitability, storage and functionality.
4x4 exterior preparation:
The exterior reinforces the adventurous character of this MAN TGE 4x4, equipped with 5 Black Rhino rims and Michelin Agilis CrossClimate tires, as well as flexible black fender flares.
At the rear, it incorporates an adjustable spare wheel support, a side tubular support for accessories, and two ratchet-style bicycle carrier rails, creating a particularly practical configuration for transporting bicycles and equipment during trips.
The set is completed with a black Fiamma F80S awning, installed using specific supports for MAN TGE L3H3.
